Specifications:
- Bar Arrangement: Available in various configurations (14, 18, 22, 26 bars)
- Number of Bars: Ranges from 28 to 52
- Radiator Depth: 70 mm or 100 mm
- Bar Diameter: Ø 25 mm
- BTU @ 50°C: Ranges from 2149 to 6500
- Watts @ 50°C: Ranges from 630 to 1905
- Element Installation Compatible: No

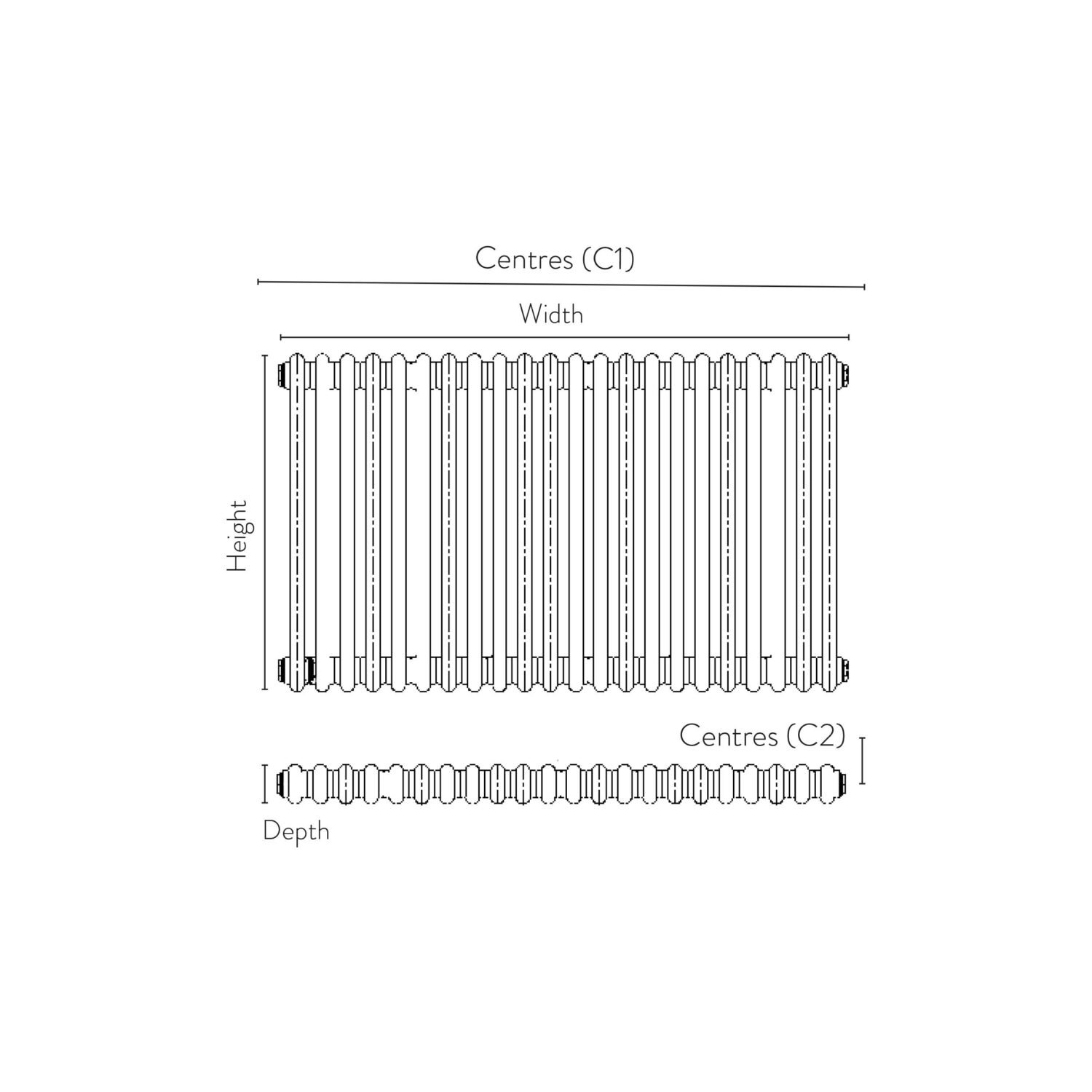

- Max Projection: Ranges from 94 mm to 109 mm
- Pipe Centers C1: Ranges from 636 mm to 1190 mm + RV
- Pipe Centers C2: 59 mm or 70 mm
Product Transportation:
- Barcodes:
- White Barcode: Varies by model
- Anthracite Barcode: Varies by model
- Raw Metal Barcode: Varies by model
- Country of Origin: CN
- Commodity Code: 7322190000
- Product Measurements:
- Weight: Ranges from 16.6 kg to 36.65 kg depending on the model
- Width: Ranges from 644 mm to 1190 mm
- Height: 600 mm
- Length: 70 mm or 100 mm
- Primary Packed Measurements:
- Packaged Weight: Ranges from 18.00 kg to 39.57 kg
- Packed Length: Ranges from 90 mm to 145 mm
- Packed Width: Ranges from 560 mm to 1050 mm
- Packed Height: Ranges from 650 mm to 1250 mm
