General Specification
|
Construction Material |
Melamine Faced Chipboard (MFC) |
|
Installation type |
Wall Mounted |
|
Colour / Finish |
Sonoma Oak / Matte Black / Reed Green |
Furniture Specification
|
Supplied Fully Assembled |
Yes |
|
Number of Drawers |
1 |
|
Number of Doors |
0 |
|
Soft Close Doors/Drawers |
1 |
|
Moisture Resistant |
yes |
|
Internal Shelves |
0 |
|
Door Opening Width (mm) |
295 |
|
Draw Opening Distance (mm) |
N/a |
|
Recommended Concealed Cistern |
N/a |
|
False Draws |
N/a |
|
Number of False Draws |
N/a |
|
Can the door be swapped over to open the opposite way |
N/a |
|
Which side is the door hinge located |
N/a |
|
Compatible Furniture Part Code |
ALFIE-600-OAK / BLACK / GREEN |
|
Compatible Basin Part Code |
BASIN005 |
Handles
|
Handle Finish |
Push to open |
|
Handle Material |
N/a |
|
Handle Material |
N/a |
|
Number of Handles |
N/a |

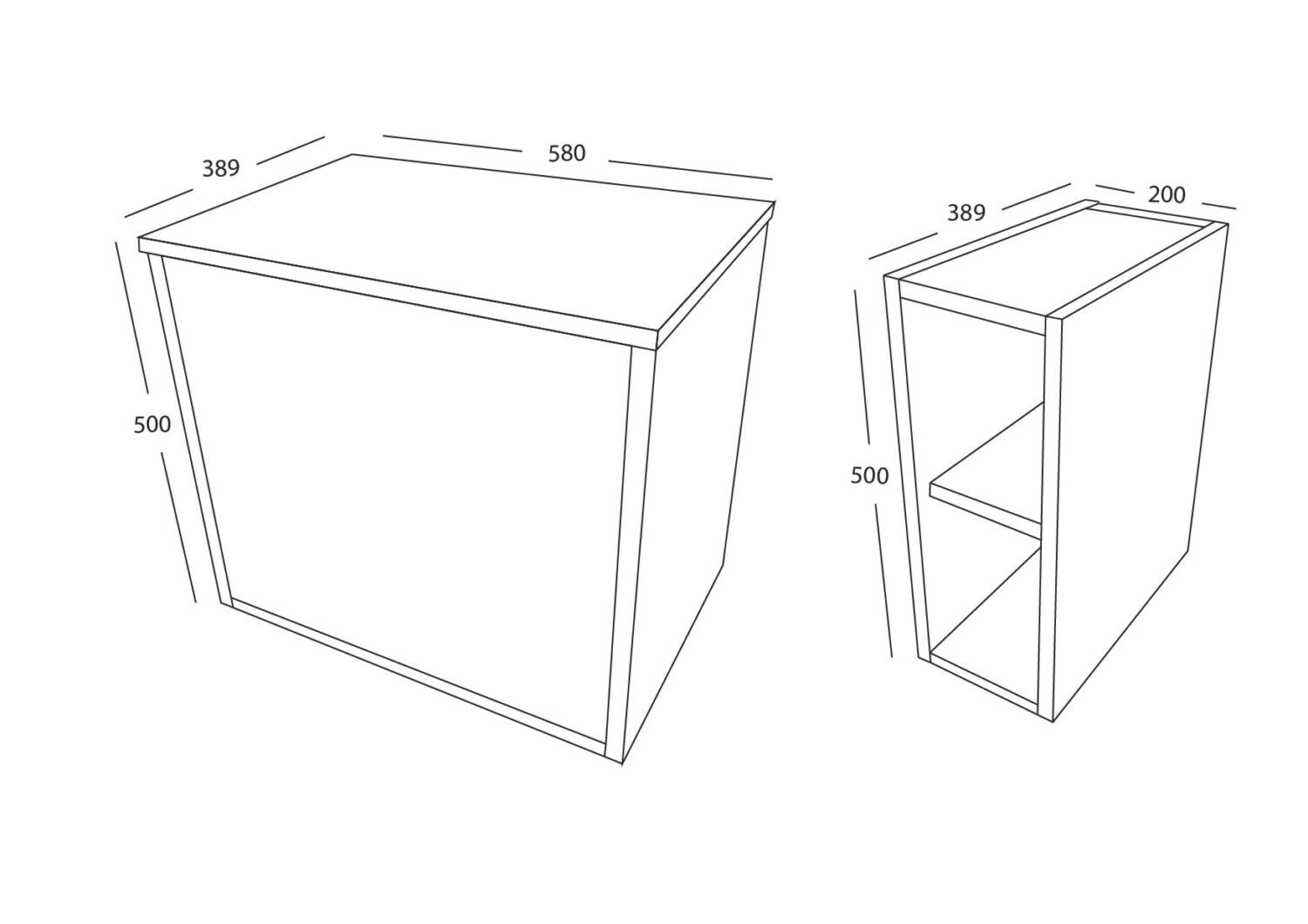

600 Cabinet
Product Transportation
Barcode: Oak – 5060964932712 / Green – 5060964932903 / Black – 5060964932897
Country of origin: UK
Commodity code: 9403609000
Product Measurements
Product Weight (KG): 20
Product Width (mm): 580
Product Height (mm): 500
Product Depth (mm): 389
Product Length (mm): 0
Primary Packed Measurements
Packaged Weight: 21.25
Packed Length: 520
Packed Width: 410
Packed Height: 610
Packaging Weights
Card (kg): 1.25
Paper (kg): 0
Wood (kg): 0
Plastic (kg): 0.05
Compliance DOP
0
200 Side Storage
Product Transportation
Barcode: Oak – 5060964932675 / Green – 5060964932880 / Black – 5060964932873
Country of origin: UK
Commodity code: 6810999000
Product Measurements
Product Weight (KG): 7.5
Product Width (mm): 200
Product Height (mm): 500
Product Depth (mm): 389
Product Length (mm): 0
Primary Packed Measurements
Packaged Weight: 8.25
Packed Length: 220
Packed Width: 420
Packed Height: 520
Packaging Weights
Card (kg): 0.75
Paper (kg): 0
Wood (kg): 0
Plastic (kg): 0.02
Compliance DOP
0

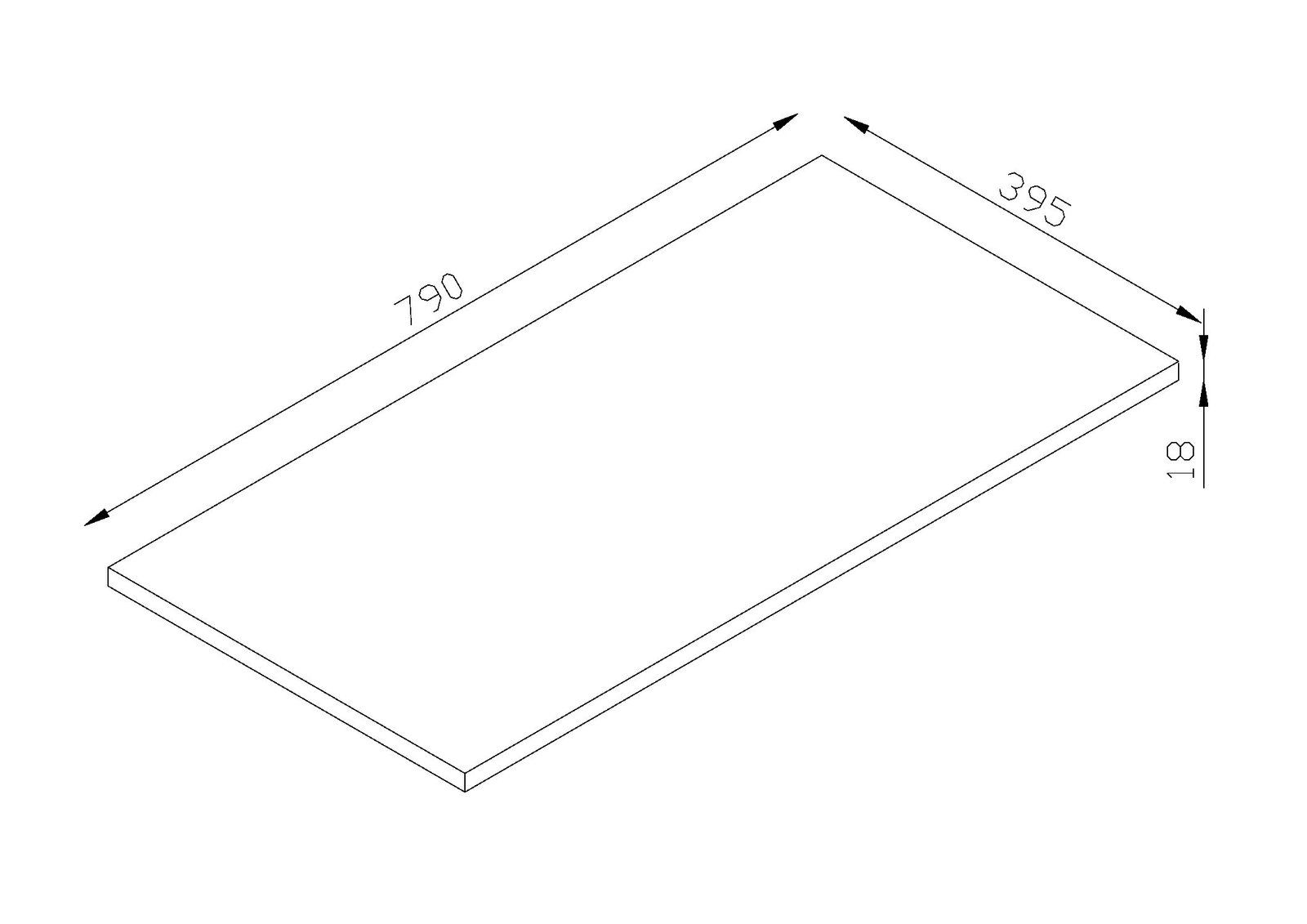

800 Worktop
Product Transportation
Barcode: Oak – 5060964932736 / Green – 5060964932927 / Black – 5060964932910
Country of origin: UK
Commodity code: 9403609000
Product Measurements
Product Weight (KG): 4
Product Width (mm): 800
Product Height (mm): 400
Product Depth (mm): 16
Product Length (mm): 0
Primary Packed Measurements
Packaged Weight: 4.35
Packed Length: 815
Packed Width: 415
Packed Height: 26
Fluted Door Front
Barcode: Oak – 5060964932699 / Green – 5060964933689 / Black – 5060964933856
Country of origin: UK
Commodity code: 9403609000
Door Product Measurements
Product Weight (KG): 3.5
Product Width (mm): 540
Product Height (mm): 476
Product Depth (mm): 16
Product Length (mm): 0
Primary Packed Measurements
Packaged Weight: 3.75
Packed Length: 555
Packed Width: 485
Packed Height: 26
