Tap / Shower Specification
- WRAS Approved: Yes
- TMV Approved: No
- Minimum Operating Pressure: 0.5 bar
- Maximum Operating Pressure: 5 bar
- Flexible Tails Included: No
- Number of Tap Holes Required: 2
- Handle Type: Lever
- Swivel Spout: No
- Inlet Connection: 3/4 BSP
- Outlet Connection: N/A
- Tap Hole Diameter: 32 mm
- Tap Type Description: Manual Mixer
- Includes Waste: No
- Valve/Cartridge Type: Quarter Turn Cartridge
- Cartridge Spare Code: N/A
Flow Rates
- 0.2 bar: 4 l/min
- 0.5 bar: 7 l/min
- 1 bar: 9.8 l/min
- 2 bar: 13.6 l/min
- 3 bar: 16.7 l/min.
Product Transportation- Barcode: 5060766124483
- Country of Origin: CH
- Commodity Code: 8481809000
Product Measurements
- Product Weight: 1.514 kg

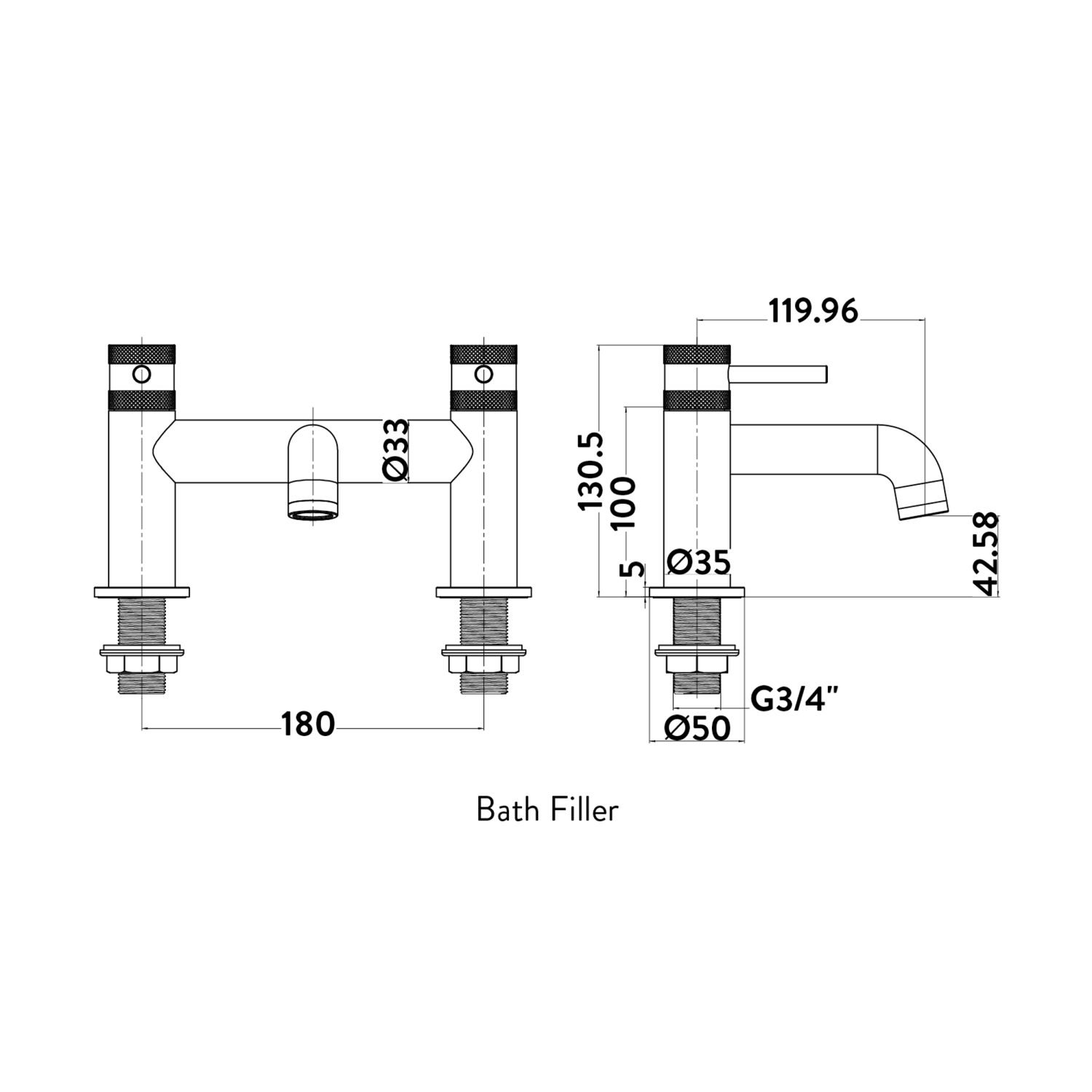

- Product Width: See Line Drawing
- Product Height: N/A
- Product Depth: N/A
- Product Length: N/A
Primary Packed Measurements
- Packaged Weight: 2.75 kg
- Packed Length: 80 mm
- Packed Width: 401 mm
- Packed Height: 256 mm
