Core Bath Shower Mixer

SKU: NU-010

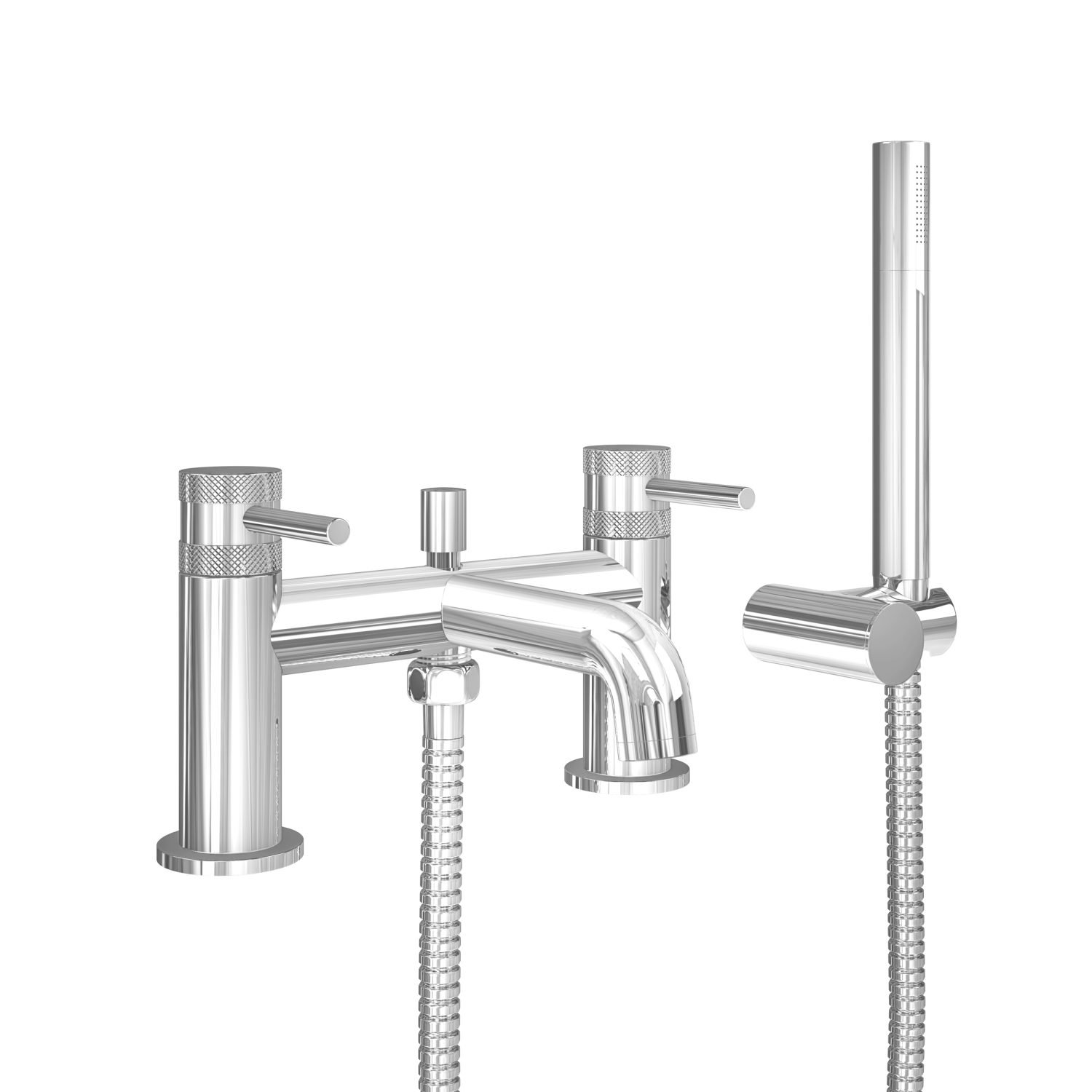

The Core bath shower mixer in chrome features two handle options, a shower kit with wall bracket, and operates at 0.5 bar pressure.

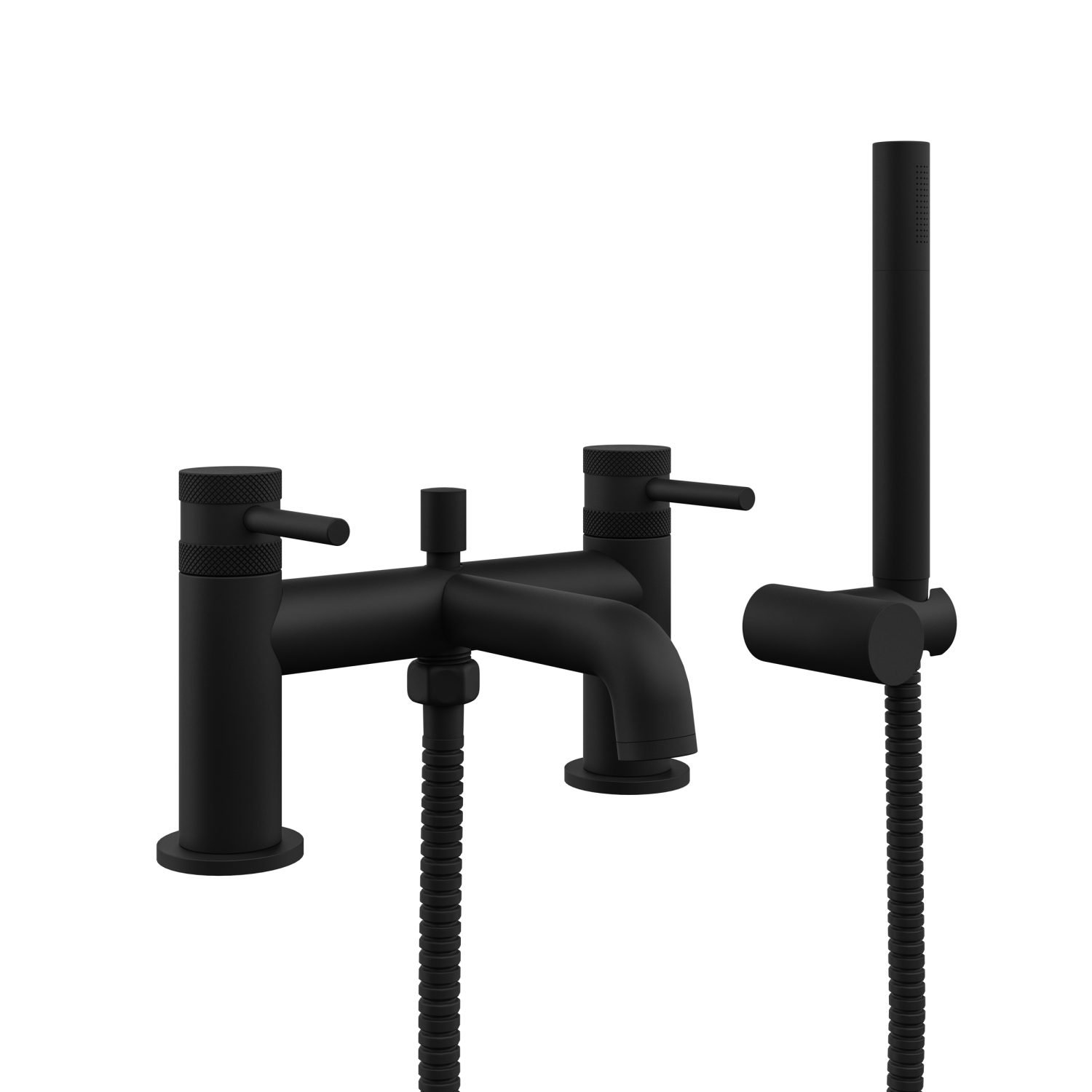

The Core bath shower mixer in matt black offers bold style, two handle options, and a shower kit with wall bracket, operating at 0.5 bar pressure.

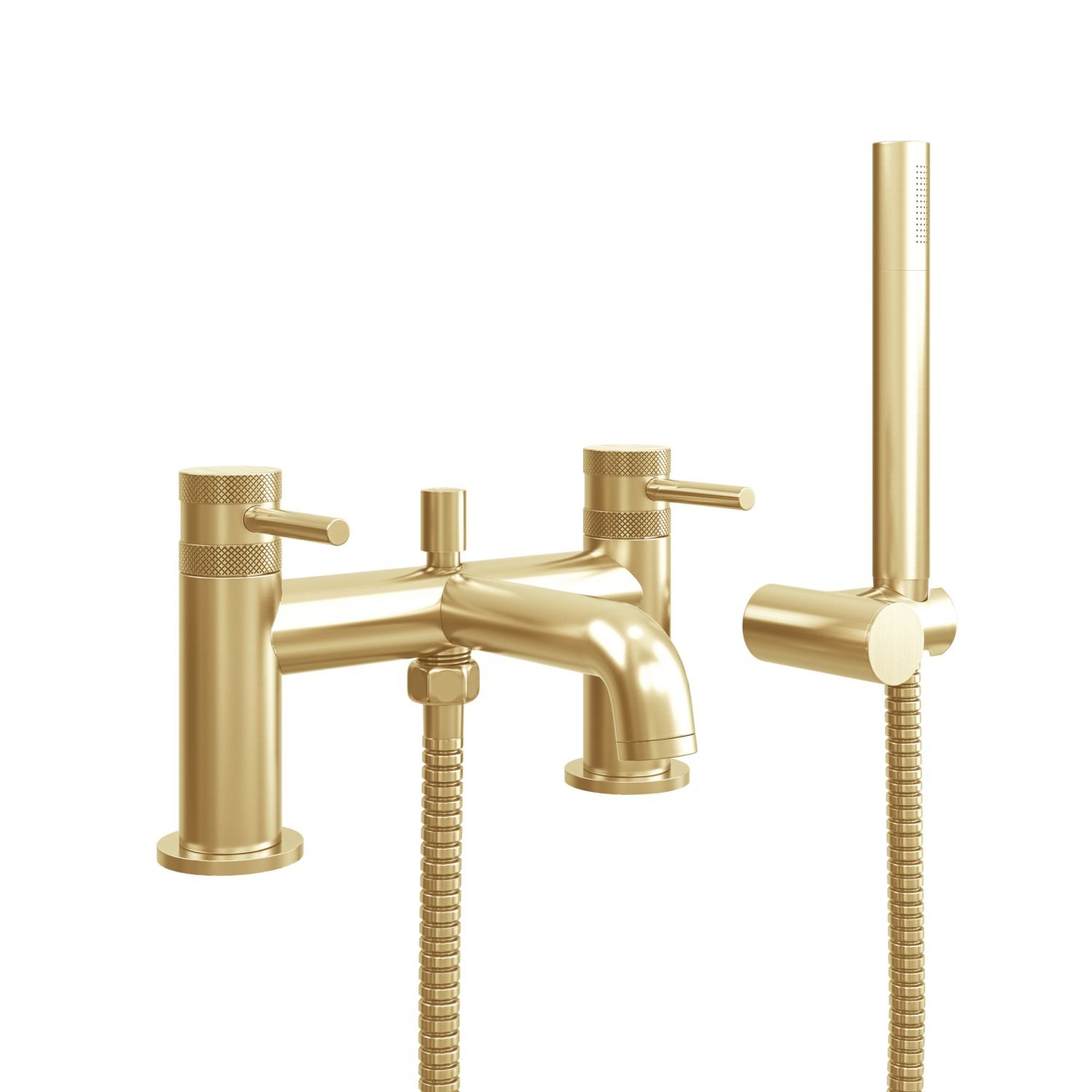

The Core brushed brass bath shower mixer combines modern elegance, two handle options, and a shower kit with wall bracket, operating at 0.5 bar pressure.





£565.00

Black
Brushed Brass
Chrome
Clear
Compare
Add to wishlist

Description

Tap / Shower Specification

  • WRAS Approved: No
  • TMV Approved: No
  • Minimum Operating Pressure (bar): 0.5
  • Maximum Operating Pressure (bar): 5
  • Flexible Tails Included: No
  • Number of Tap Holes Required: 2
  • Handle Type: Lever
  • Swivel Spout: No
  • Inlet Connection: 3/4 BSP
  • Outlet Connection: 1/2 BSP handset
  • Tap Hole Diameter (mm): 32
  • Tap Type Description: Manual Mixer
  • Includes Waste: No
  • Valve / Cartridge Type: Quarter turn cartridge
  • Flow Rates:
    • 0.2 bar (l/min): 4.4
    • 0.5 bar (l/min): 6.8
    • 1 bar (l/min): 9.3
    • 2 bar (l/min): 13.3
    • 3 bar (l/min): 15.9.


Product Transportation Information

  • Barcode: 5060766124513
  • Country of Origin: CH
  • Commodity Code: 8481809000
  • Product Weight: 1.887 kg
  • Packed Weight: 3.125 kg
  • Packed Dimensions:
    • Length: 210 mm
    • Width: 289 mm
    • Height: 230 mm
