Core Mono Basin

Tap / Shower specification

1. WRAS Approved: Yes
2. WRAS Expiry Date: 30/09/2027
3. TMV Approved: No
4. Minimum Operating Pressure: 0.5 bar
5. Maximum Operating Pressure: 5 bar
6. Flexible Tails Included: Yes
7. Number of Tap Holes Required: 1
8. Handle Type: Lever
9. Swivel Spout: No
10. Inlet Connection: 1/2″ M10
11. Outlet Connection: N/A
12. Tap Hole Diameter: 35 mm
13. Tap Type Description: Mono Mixer
14. Includes Waste: No
15. Valve / Cartridge Type: 35mm Cartridge
16. Cartridge Spare Code: N/A

Flow Rates:

• 0.2 bar (l/min): 2.5
• 0.5 bar (l/min): 4
• 1 bar (l/min): 6
• 2 bar (l/min): 8.5
• 3 bar (l/min): 10.6


  ---



  Product Transportation Details:

  1. Barcode: 5060766124421, 5060766124445, 5060964934587, 5060964935379
  2. Country of Origin: CH
  3. Commodity Code: 8481809000

  Product Measurements:

  1. Product Weight:
     • 1.62 kg
     • 1.6 kg
     • 1.2 kg
     • 1.199 kg
  2. Product Width:

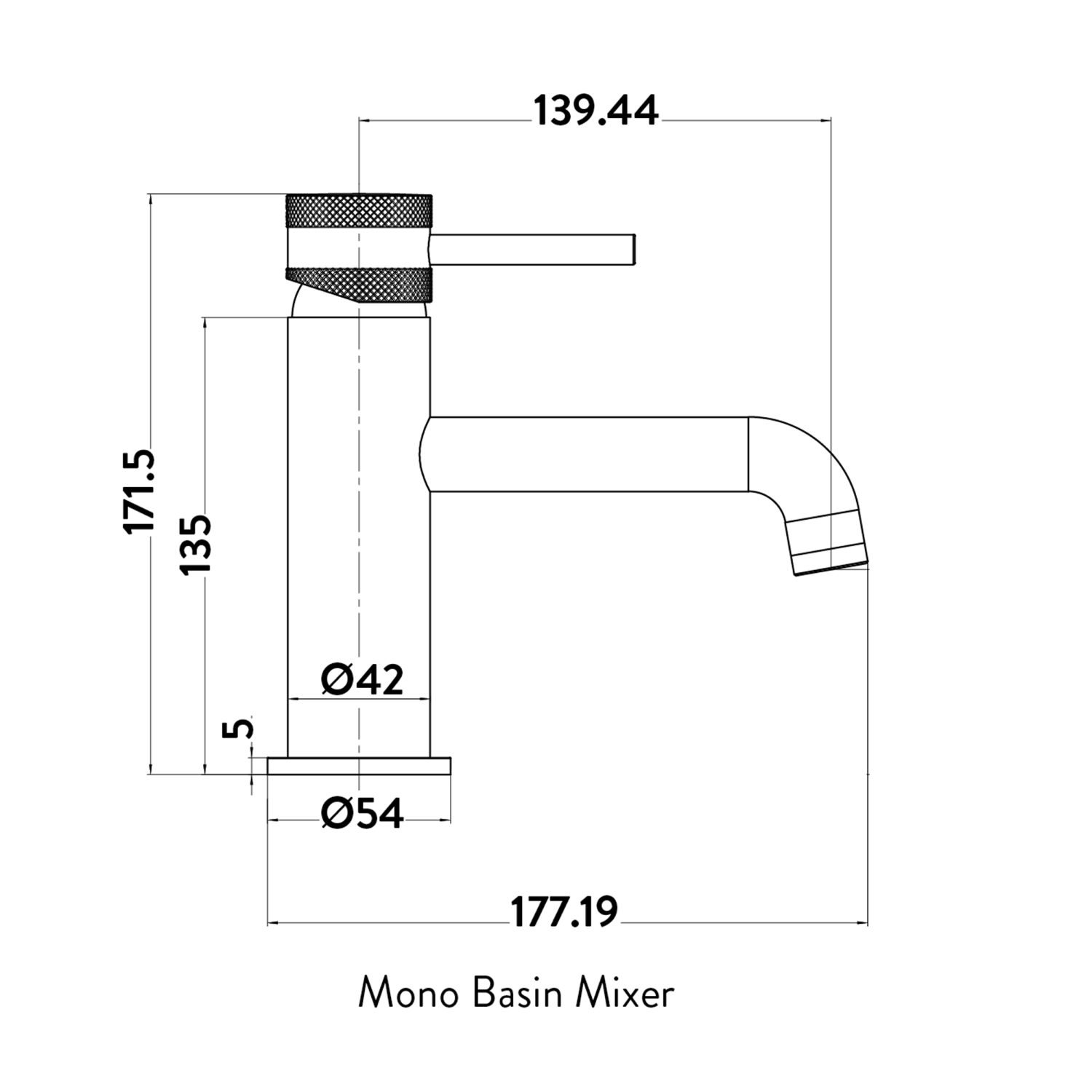

     • See line drawing
     • 42 mm
  3. Product Height:
     • Not specified
     • 171.5 mm
  4. Product Depth:
     • Not specified
     • 177 mm
  5. Product Length: Not specified

  Primary Packed Measurements:

  1. Packaged Weight: 1.7 kg
  2. Packed Dimensions:
     • Length: 80 mm, Width: 420 mm, Height: 214 mm
     • Length: 255 mm, Width: 170 mm, Height: 80 mm
     • Length: 270 mm, Width: 195 mm, Height: 85 mm
