General Specification
WRAS Approved Shower Valve
|
Construction Material |
Brass |
|
Installation type |
Mono mixer |
|
Colour / Finish |
Matt Black |
Product Specification
Tap / Shower specification
|
WRAS Approved |
Yes |
|
TMV Approved |
No |
|
Minimum Operating Pressure (bar) |
0.2 |
|
Maximum Operating Pressure (bar) |
5 |
|
Flexible Tails Included |
Yes |
|
Number of tap holes required |
1 |
|
Handle Type |
Lever |
|
Swivel Spout |
No |
|
Inlet Connection |
1/2" M10 |
|
Outlet Connection |
N/a |
|
Tap Hole Diameter (mm) |
35 |
|
Tap Type description |
Mono Mixer |
|
Includes Waste |
Yes |
|
Valve / Cartridge Type |
Single lever cartriges 35mm |
|
Cartridge Spare code |
T8702-08 |
Flow Rates
|
0.2bar (l/min) |
3.6 |
|
0.5bar (l/min) |
8.6 |
|
1bar (l/min) |
12.1 |
|
2bar (l/min) |
17.2 |
|
3bar (l/min) |
20.8 |
Product Transportation
Barcode: 5060713724537
Country of origin: CH
Commodity code: 8481801190
Product Measurements
Product Weight (KG): 1.48

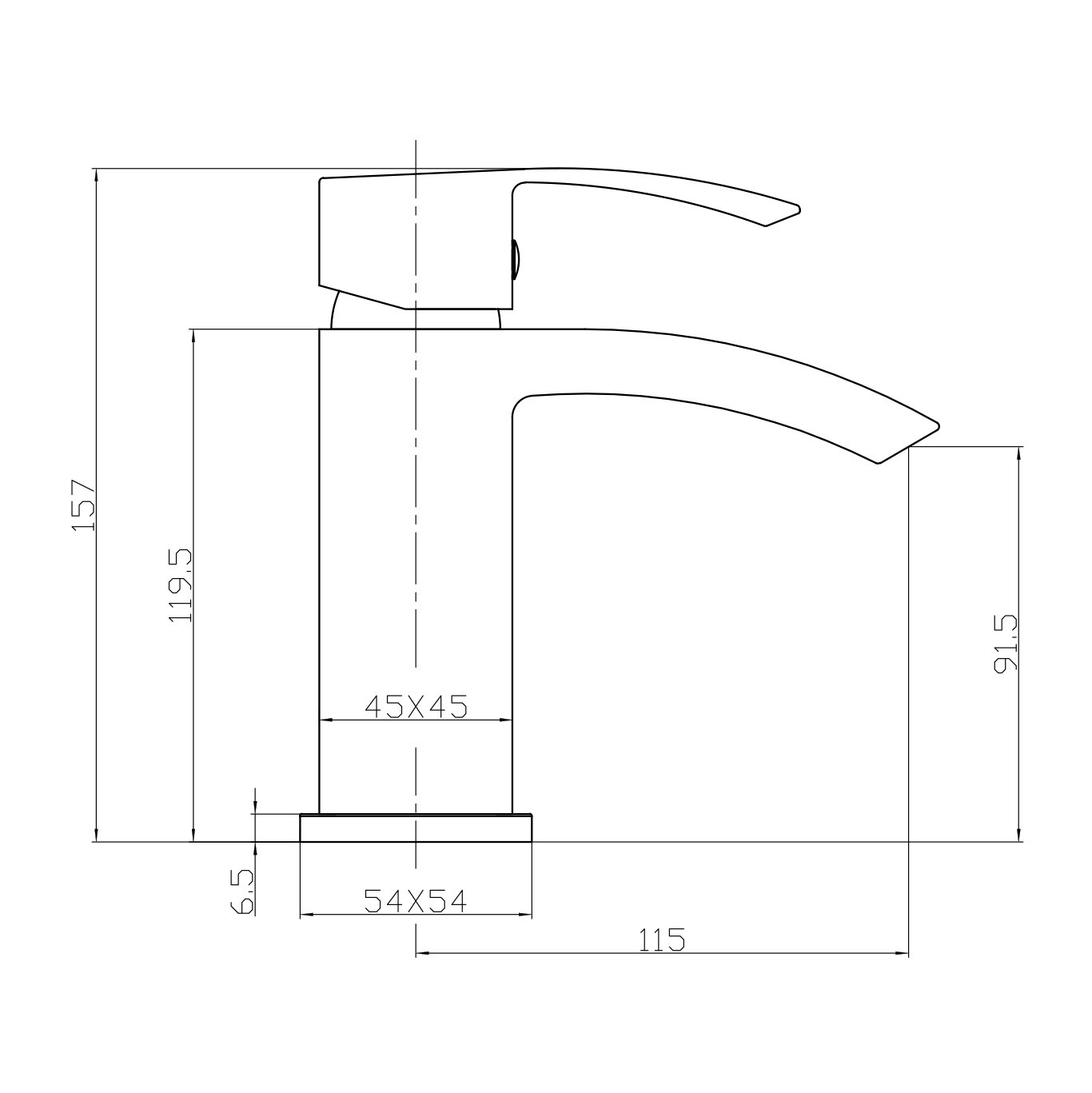

Product Width (mm): See Line Drawing
Product Height (mm): –
Product Depth (mm): –
Product Length (mm): –
Primary Packed Measurements
Packaged Weight: 1.55
Packed Length: 80
Packed Width: 170
Packed Height: 255
