Tap / Shower specification
WRAS Approved
Yes
TMV Approved
No
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5
Flexible Tails Included
No
Number of tap holes required
2
Handle Type
Lever
Swivel Spout
No
Inlet Connection
3/4 BSP
Outlet Connection
N/a
Tap Hole Diameter (mm)
32
Tap Type description
Manual Mixer
Includes Waste
No
Valve / Cartridge Type
Quarter Turn Cartridge
Cartridge Spare code
T8308-08
Flow Rates
0.2bar (l/min)
4.3
0.5bar (l/min)
6.8
1bar (l/min)
11.8
2bar (l/min)
16.5
3bar (l/min)
20.2
Product Transportation
Barcode: 5060500640767
Country of origin: CH
Commodity code: 8481801190
Product Measurements
Product Weight (KG): 1.73

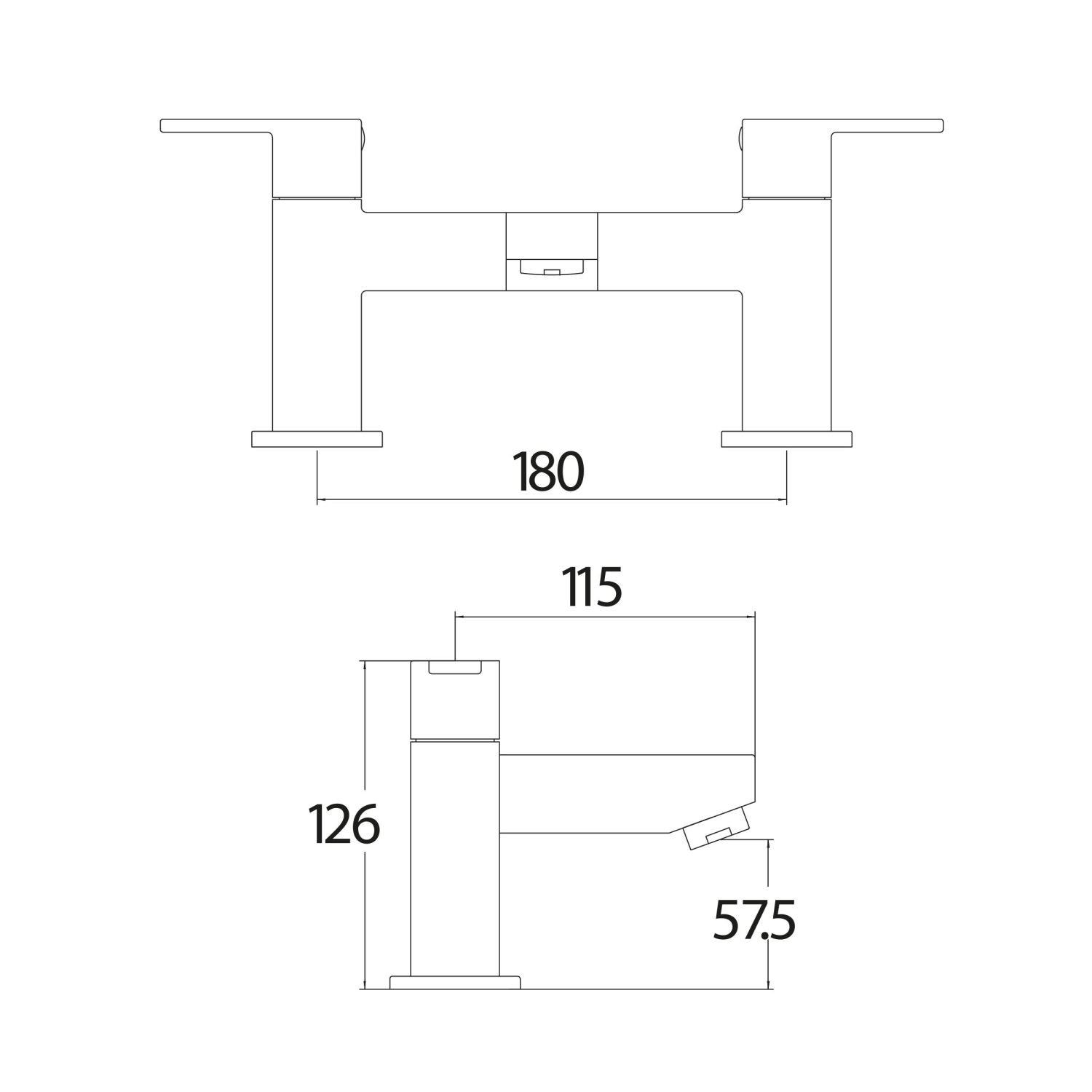

Product Width (mm): See Linedrawing
Product Height (mm): 0
Product Depth (mm): 0
Product Length (mm): 0
Primary Packed Measurements
Packaged Weight: 2
Packed Length: 240
Packed Width: 200
Packed Height: 155
Compliance DOP
HBDOC007 , HBDOC008
