General Specification
|
Construction Material |
Brass |
|
Installation type |
Deck Mounted |
|
Colour / Finish |
Chrome |
Product Specification
|
WRAS Approved |
No |
|
TMV Approved |
No |
|
Minimum Operating Pressure (bar) |
0.2 |
|
Maximum Operating Pressure (bar) |
5 |
|
Flexible Tails Included |
No |
|
Number of tap holes required |
12 |
|
Handle Type |
Lever |
|
Swivel Spout |
No |
|
Inlet Connection |
3/4 BSP |
|
Outlet Connection |
N/a |
|
Tap Hole Diameter (mm) |
32 |
|
Tap Type description |
Manual Mixer |
|
Includes Waste |
No |
|
Valve / Cartridge Type |
Quarter Turn Cartridge |
|
Cartridge Spare code |
T8805-08 |
Flow Rates
|
0.2bar (l/min) |
6.6 |
|
0.5bar (l/min) |
10.8 |
|
1bar (l/min) |
15.5 |
|
2bar (l/min) |
18.2 |
|
3bar (l/min) |
20.3 |
Product Transportation
Barcode: 5060500640729
Country of origin: CH
Commodity code: 8481801190

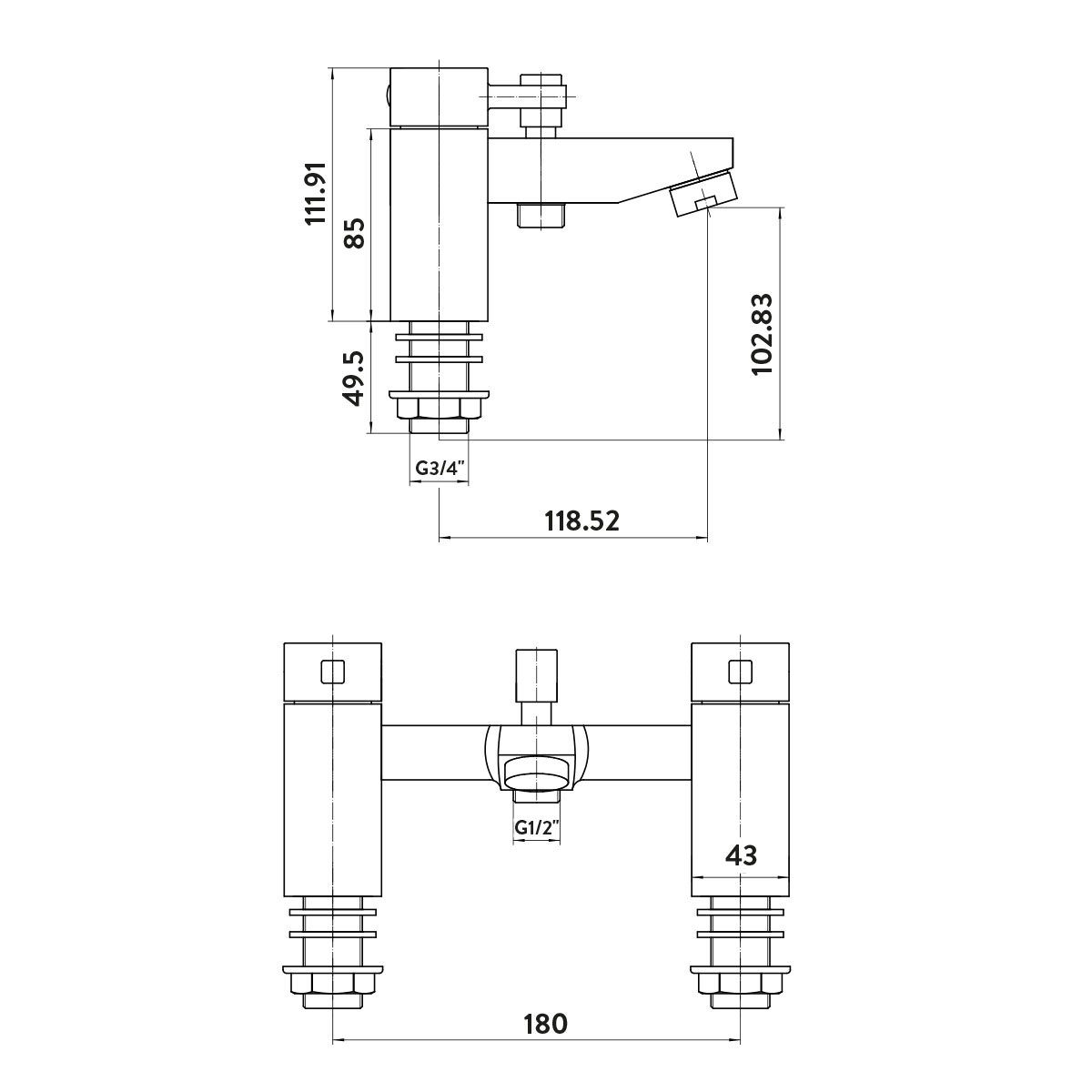

Product Measurements
Product Weight (KG): 1.875
Product Width (mm): 222.5
Product Height (mm): 112
Product Length (mm): 151
Primary Packed Measurements
Packaged Weight: 2.25
Packed Length: 24
Packed Width: 20
Packed Height: 16
Compliance DOP
HBDOC038 , HBDOC039 , HBDOC040 , HBDOC041
