General Specification
Construction Material
Brass , Stainless Steel
Installation type
Deck Mounted
Colour / Finish
Chrome
Tap / Shower specification
WRAS Approved
No
TMV Approved
No
Minimum Operating Pressure (bar)
0.2
Maximum Operating Pressure (bar)
5
Flexible Tails Included
Yes
Number of tap holes required
1
Handle Type
Lever
Swivel Spout
Yes
Inlet Connection
1/2″ M10
Outlet Connection
N/a
Tap Hole Diameter (mm)
35
Tap Type description
Manual Mixer
Includes Waste
No
Valve / Cartridge Type
Quarter Turn Cartridge
Cartridge Spare code
T1006-08
No
TMV Approved
No
Minimum Operating Pressure (bar)
0.2
Maximum Operating Pressure (bar)
5
Flexible Tails Included
Yes
Number of tap holes required
1
Handle Type
Lever
Swivel Spout
Yes
Inlet Connection
1/2″ M10
Outlet Connection
N/a
Tap Hole Diameter (mm)
35
Tap Type description
Manual Mixer
Includes Waste
No
Valve / Cartridge Type
Quarter Turn Cartridge
Cartridge Spare code
T1006-08
Flow Rates
0.2bar (l/min)
3.5
0.5bar (l/min)
6
1bar (l/min)
8.1
2bar (l/min)
11.5
3bar (l/min)
14
3.5
0.5bar (l/min)
6
1bar (l/min)
8.1
2bar (l/min)
11.5
3bar (l/min)
14
Product Transportation
Barcode: 5060500640279
Country of origin: CH
Commodity code: 8481801190

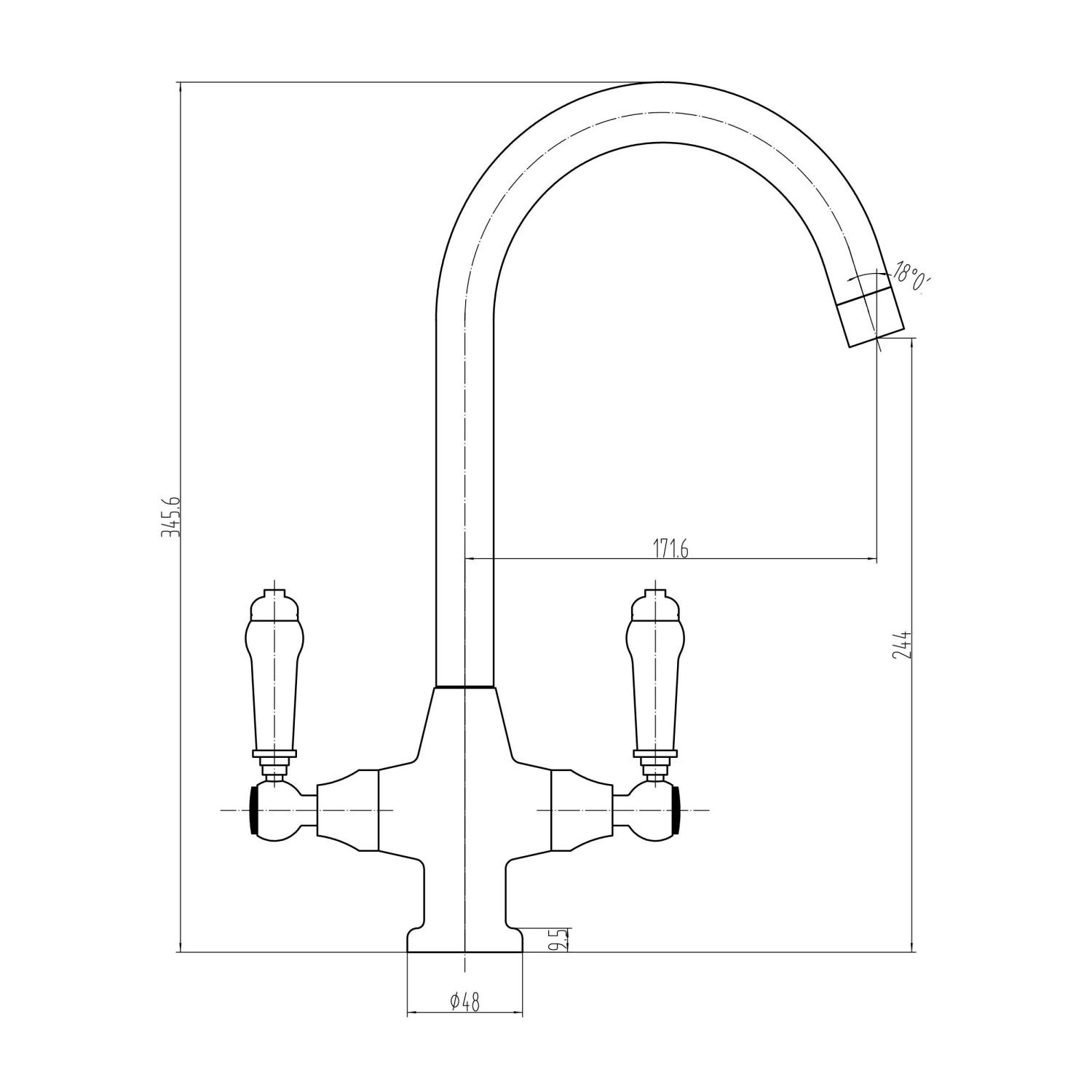

Product Measurements
Product Weight (KG): 1.26
Product Width (mm): 171.6
Product Height (mm): 245.6
Product Depth (mm): 48
Product Length (mm): 0
Primary Packed Measurements
Packaged Weight: 1.7
Packed Length: 260
Packed Width: 450
Packed Height: 60
Packaging Weights
Card (kg): 0.093
Paper (kg): 0
Wood (kg): 0
Plastic (kg): 0.091
Compliance DOP
HBDOC041 , HBDOC040
