General Specification
Construction Material
Brass, Stainless Steel
Installation type
Deck Mounted
Colour / Finish
Chrome
Tap / Shower specification
WRAS Approved
Yes
TMV Approved
No
Minimum Operating Pressure (bar)
0.2
Maximum Operating Pressure (bar)
5
Flexible Tails Included
Yes
Number of tap holes required
1
Handle Type
Lever
Swivel Spout
Yes
Inlet Connection
1/2″ M10
Outlet Connection
N/a
Tap Hole Diameter (mm)
35
Tap Type description
Manual Mixer
Includes Waste
No
Valve / Cartridge Type
Quarter Turn Cartridge
Cartridge Spare code
T7507-08
Yes
TMV Approved
No
Minimum Operating Pressure (bar)
0.2
Maximum Operating Pressure (bar)
5
Flexible Tails Included
Yes
Number of tap holes required
1
Handle Type
Lever
Swivel Spout
Yes
Inlet Connection
1/2″ M10
Outlet Connection
N/a
Tap Hole Diameter (mm)
35
Tap Type description
Manual Mixer
Includes Waste
No
Valve / Cartridge Type
Quarter Turn Cartridge
Cartridge Spare code
T7507-08
Flow Rates
0.2bar (l/min)
3.4
0.5bar (l/min)
5.6
1bar (l/min)
7.8
2bar (l/min)
10.8
3bar (l/min)
13.05
3.4
0.5bar (l/min)
5.6
1bar (l/min)
7.8
2bar (l/min)
10.8
3bar (l/min)
13.05
Product Transportation
Barcode: 5060500640286
Country of origin: CH
Commodity code: 8481801190

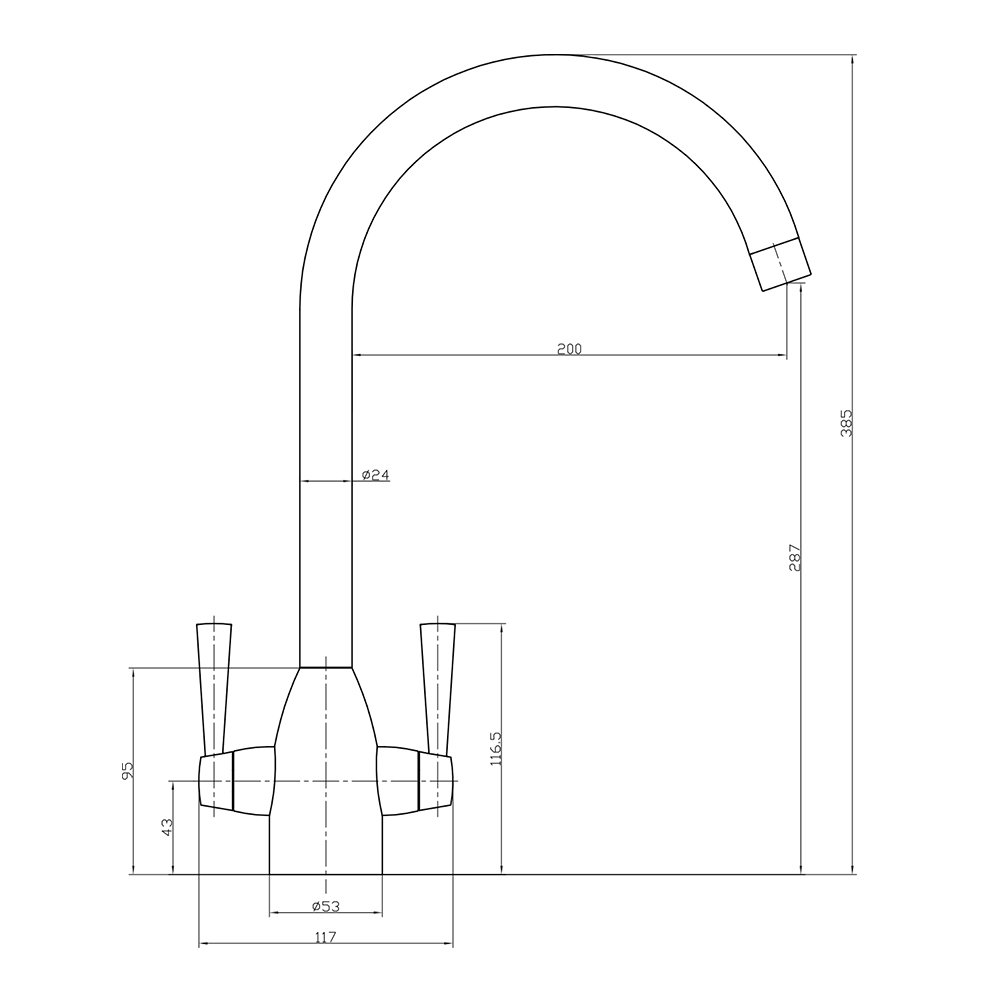

Product Measurements
Product Weight (KG): 1.5
Product Width (mm): 122
Product Height (mm): 372
Product Depth (mm): 0
Product Length (mm): 203
Primary Packed Measurements
Packaged Weight: 1.75
Packed Length: 55
Packed Width: 290
Packed Height: 385
