Tap / Shower specification
WRAS Approved
No
TMV Approved
No
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5
Flexible Tails Included
No
Number of tap holes required
3
Handle Type
Lever
Swivel Spout
No
Inlet Connection
1/2 BSP
Outlet Connection
1/2 BSP handset
Tap Hole Diameter (mm)
32 & 35
Tap Type description
Mono Mixer
Includes Waste
No
Valve / Cartridge Type
Quarter Turn Cartridge
Cartridge Spare code
N/a
Flow Rates
0.2bar (l/min)
3.6
0.5bar (l/min)
7.4
1bar (l/min)
10.5
2bar (l/min)
14.9
3bar (l/min)
18.2
Product Transportation
Barcode: 5060964933054Country of origin: CH
Commodity code: 8481801190

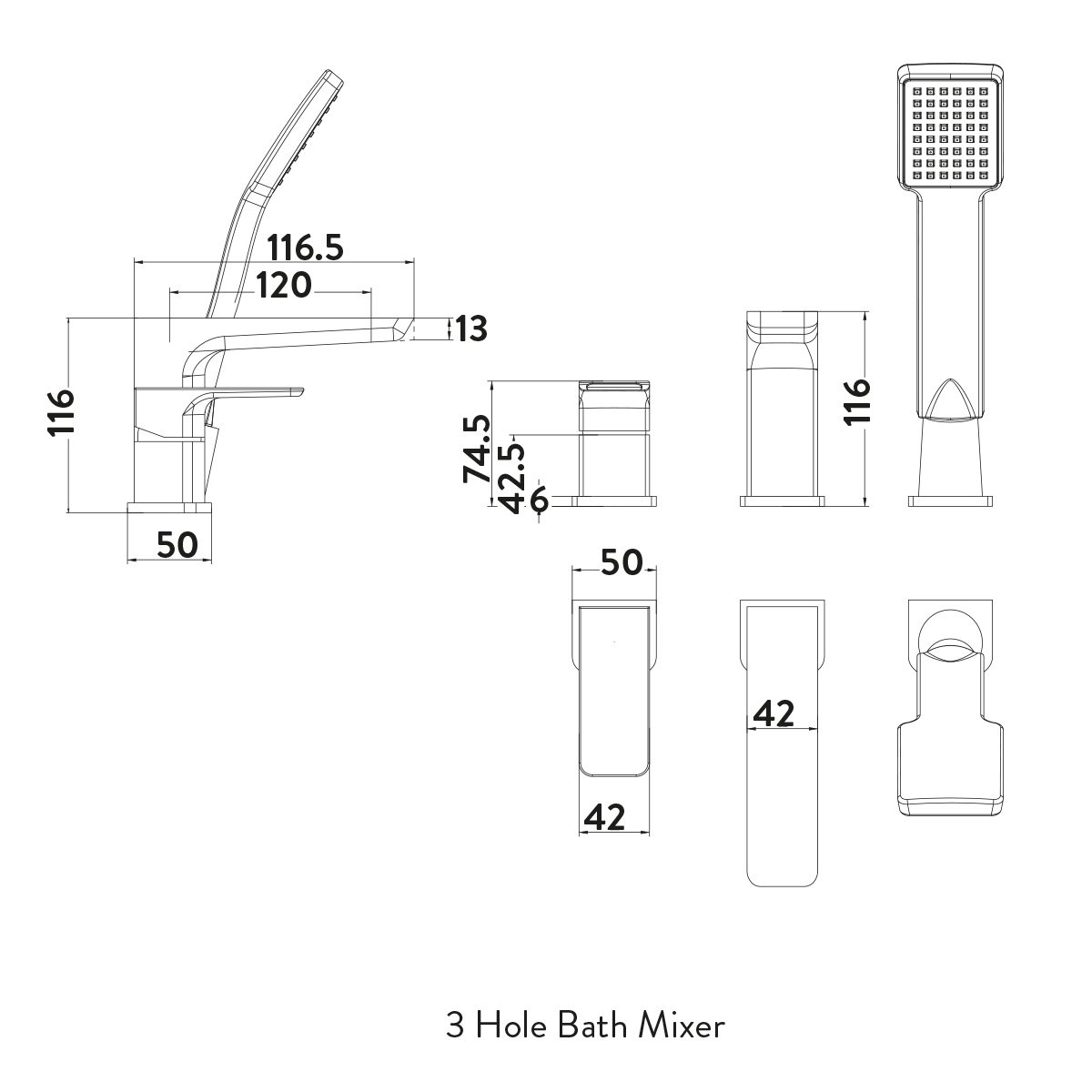

Product Measurements
Product Weight (KG): 3.05
Product Width (mm): 0
Product Height (mm): 116
Product Depth (mm): 0
Product Length (mm): 166.5
Primary Packed Measurements
Packaged Weight: 3.25
Packed Length: 33.5
Packed Width: 20
Packed Height: 7.8
Packaging Weights
Card (kg): 0.15
Paper (kg): 0
Wood (kg): 0
Plastic (kg): 0
Compliance DOP
HBDOC007 , HBDOC008
