Tap / Shower specification
WRAS Approved
No
TMV Approved
No
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5
Flexible Tails Included
Yes
Number of tap holes required
0
Handle Type
Lever
Swivel Spout
No
Inlet Connection
3/4 BSP
Outlet Connection
1/2 BSP handset
Tap Hole Diameter (mm)
N/a
Tap Type description
Mono Mixer
Includes Waste
Yes
Valve / Cartridge Type
Plastic Cartridge
Cartridge Spare code
N/a
Flow Rates
0.2bar (l/min)
3.4
0.5bar (l/min)
7
1bar (l/min)
9.8
2bar (l/min)
13.7
3bar (l/min)
16.9
Product Transportation
Barcode: 5060964932774 , 5060991200051
Country of origin: CH
Commodity code: 8481801190

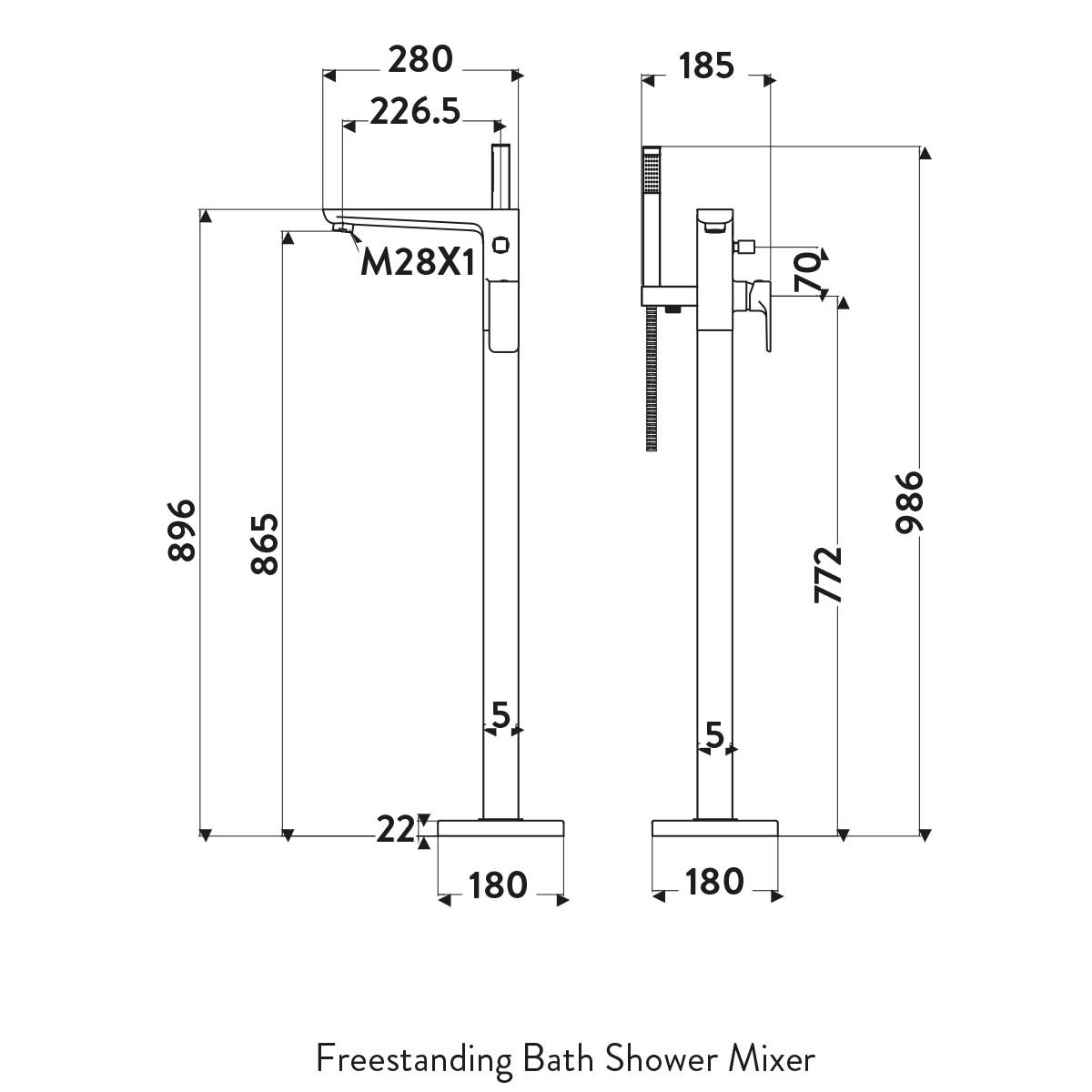

Product Measurements
Product Weight (KG): 6.88 , 7
Product Width (mm): 185
Product Height (mm): 986
Product Depth (mm): 0
Product Length (mm): 280
Primary Packed Measurements
Packaged Weight: 8
Packed Length: 96
Packed Width: 39
Packed Height: 23
Packaging Weights
Card (kg): 1.12
Paper (kg): 0
Wood (kg): 0
Plastic (kg): 0.05 , 0.013
Compliance DOP
HBDOC007 , HBDOC008
