General Specification
WRAS Approved Shower Valve
|
Construction Material |
Brass |
|
Installation type |
Mono Mixer |
|
Colour / Finish |
Chrome |
Product Specification
Tap / Shower specification
|
WRAS Approved |
Yes |
|
TMV Approved |
No |
|
Minimum Operating Pressure (bar) |
0.2 |
|
Maximum Operating Pressure (bar) |
5 |
|
Flexible Tails Included |
Yes |
|
Number of tap holes required |
1 |
|
Handle Type |
Lever |
|
Swivel Spout |
No |
|
Inlet Connection |
1/2" M10 |
|
Outlet Connection |
N/a |
|
Tap Hole Diameter (mm) |
35 |
|
Tap Type description |
Mono Mixer |
|
Includes Waste |
Yes |
|
Valve / Cartridge Type |
Plastic Cartridge |
|
Cartridge Spare code |
No |
Tap / Shower specification
Flow Rates
|
0.2bar (l/min) |
3.8 |
|
0.5bar (l/min) |
7.8 |
|
1bar (l/min) |
10.9 |
|
2bar (l/min) |
15.3 |
|
3bar (l/min) |
18.7 |
Product Transportation
Barcode: 5060713724599
Country of origin: CH
Commodity code: 8481801190

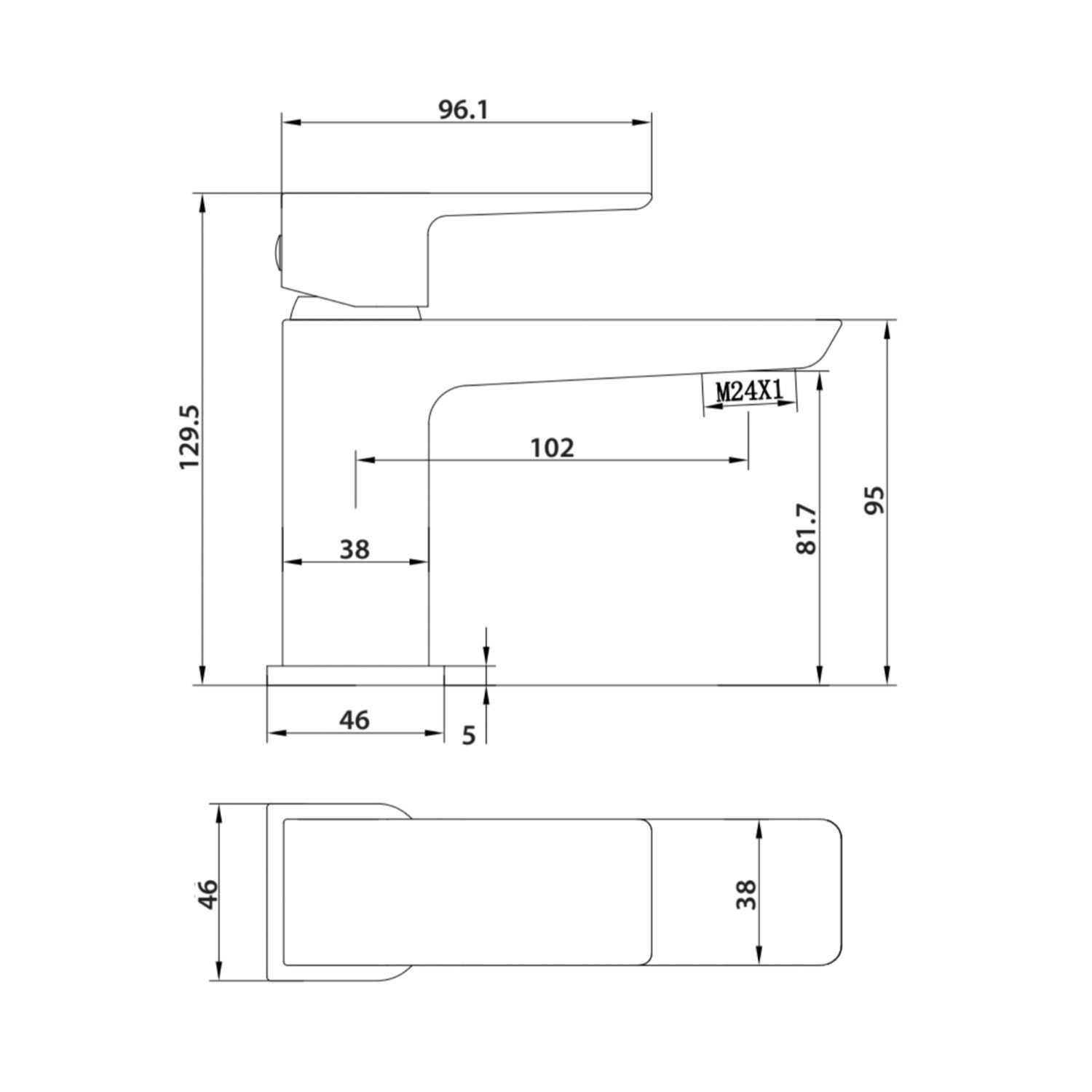

Product Measurements
Product Weight (KG): 1.18
Product Width (mm): 46
Product Height (mm): 129.5
Product Length (mm): 148
Primary Packed Measurements
Packaged Weight: 1.34
Packed Length: 255
Packed Width: 170
Packed Height: 80
