Tap / Shower specification
WRAS Approved
No
TMV Approved
No
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5
Flexible Tails Included
Yes
Number of tap holes required
0
Handle Type
Lever
Swivel Spout
Yes
Inlet Connection
3/4 BSP
Outlet Connection
1/2 BSP handset
Tap Hole Diameter (mm)
N/a
Tap Type description
Mono Mixer
Includes Waste
No
Valve / Cartridge Type
Plastic Cartridge
Cartridge Spare code
T7350-08
Flow Rates
0.2bar (l/min)
3.6
0.5bar (l/min)
6.3
1bar (l/min)
9
2bar (l/min)
12.4
3bar (l/min)
15.8
Product Transportation
Barcode: 5060500640965
Country of origin: CH
Commodity code: 8481801190

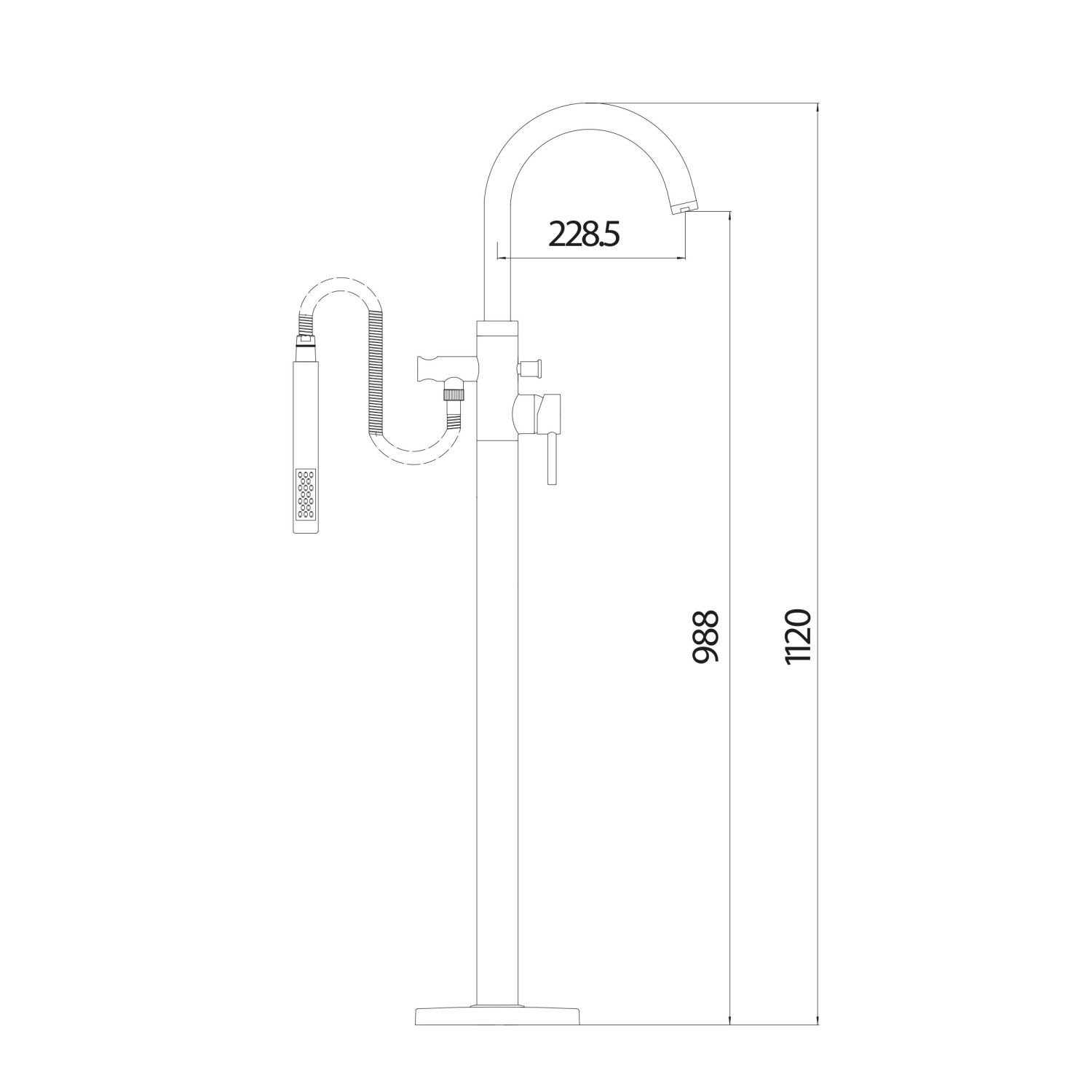

Product Measurements
Product Weight (KG): 4.886
Product Width (mm): 193
Product Height (mm): 1128
Product Depth (mm): 0
Product Length (mm): 286
Primary Packed Measurements
Packaged Weight: 5
Packed Length: 117
Packed Width: 36
Packed Height: 7
Packaging Weights
Card (kg): 1.02
Paper (kg): 0
Wood (kg): 0
Plastic (kg): 0
Compliance DOP
HBDOC041 , HBDOC040
