Tap / Shower specification
WRAS Approved
Yes
TMV Approved
No
Minimum Operating Pressure (bar)
0.2
Maximum Operating Pressure (bar)
5
Flexible Tails Included
Yes
Number of tap holes required
1
Handle Type
Lever
Swivel Spout
No
Inlet Connection
1/2″ M10
Outlet Connection
N/a
Tap Hole Diameter (mm)
35
Tap Type description
Mono Mixer
Includes Waste
Yes
Valve / Cartridge Type
Plastic Cartridge
Cartridge Spare code
T7502M-08
Flow Rates
0.2bar (l/min)
3.2
0.5bar (l/min)
6.4
1bar (l/min)
8.8
2bar (l/min)
12.5
3bar (l/min)
15.1
Tap / Shower specification
WRAS Approved
NO
TMV Approved
0
Minimum Operating Pressure (bar)
0.2
Maximum Operating Pressure (bar)
5
Flexible Tails Included
Yes
Number of tap holes required
1
Handle Type
Lever
Swivel Spout
No
Inlet Connection
1/2″ M10
Outlet Connection
N/a
Tap Hole Diameter (mm)
35
Tap Type description
Mono Mixer
Includes Waste
Yes
Valve / Cartridge Type
Plastic Cartridge
Cartridge Spare code
0
Flow Rates
0.2bar (l/min)
4.66
0.5bar (l/min)
4.96
1bar (l/min)
8.18
2bar (l/min)
11.14
3bar (l/min)
15.06
Product Transportation
Barcode: 5060500641023
Country of origin: CH
Commodity code: 8481801190
Product Measurements
Product Weight (KG): 1.09

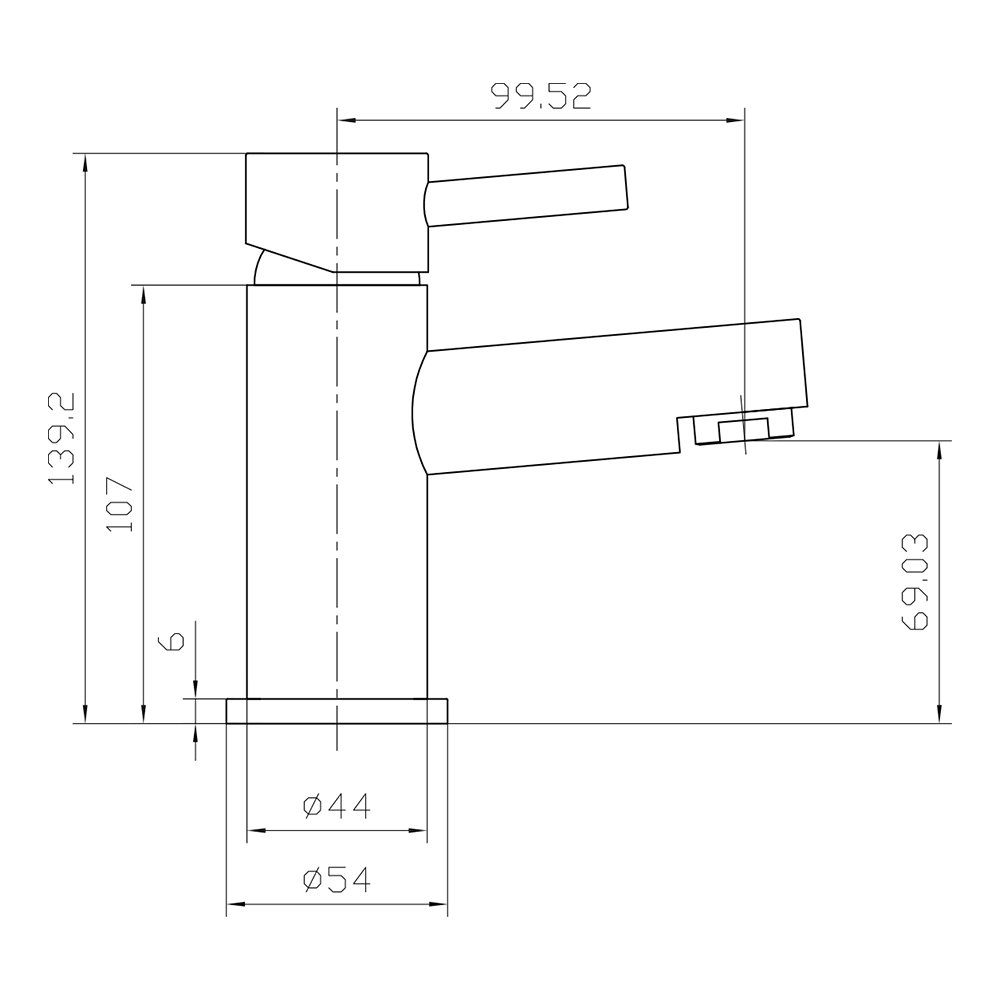

Product Width (mm): See Line Drawing
Product Height (mm): See Line Drawing
Product Depth (mm): See Line Drawing
Product Length (mm): See Line Drawing
Primary Packed Measurements
Packaged Weight: 1.3
Packed Length: 29
Packed Width: 16
Packed Height: 6.5
Compliance DOP
0
