Tap / Shower specification
WRAS Approved
Yes
TMV Approved
No
Minimum Operating Pressure (bar)
0.2
Maximum Operating Pressure (bar)
5
Flexible Tails Included
Yes
Number of tap holes required
1
Handle Type
Lever
Swivel Spout
No
Inlet Connection
1/2″ M10
Outlet Connection
N/a
Tap Hole Diameter (mm)
32
Tap Type description
Mono Mixer
Includes Waste
No
Valve / Cartridge Type
1/4 turn ceramic disc
Cartridge Spare code
T7602-08
Flow Rates
0.2bar (l/min)
3.2
0.5bar (l/min)
6.4
1bar (l/min)
8.8
2bar (l/min)
12.5
3bar (l/min)
15.1
Product Transportation
Barcode: 5060991200198
Country of origin: CH
Commodity code: 8481801190

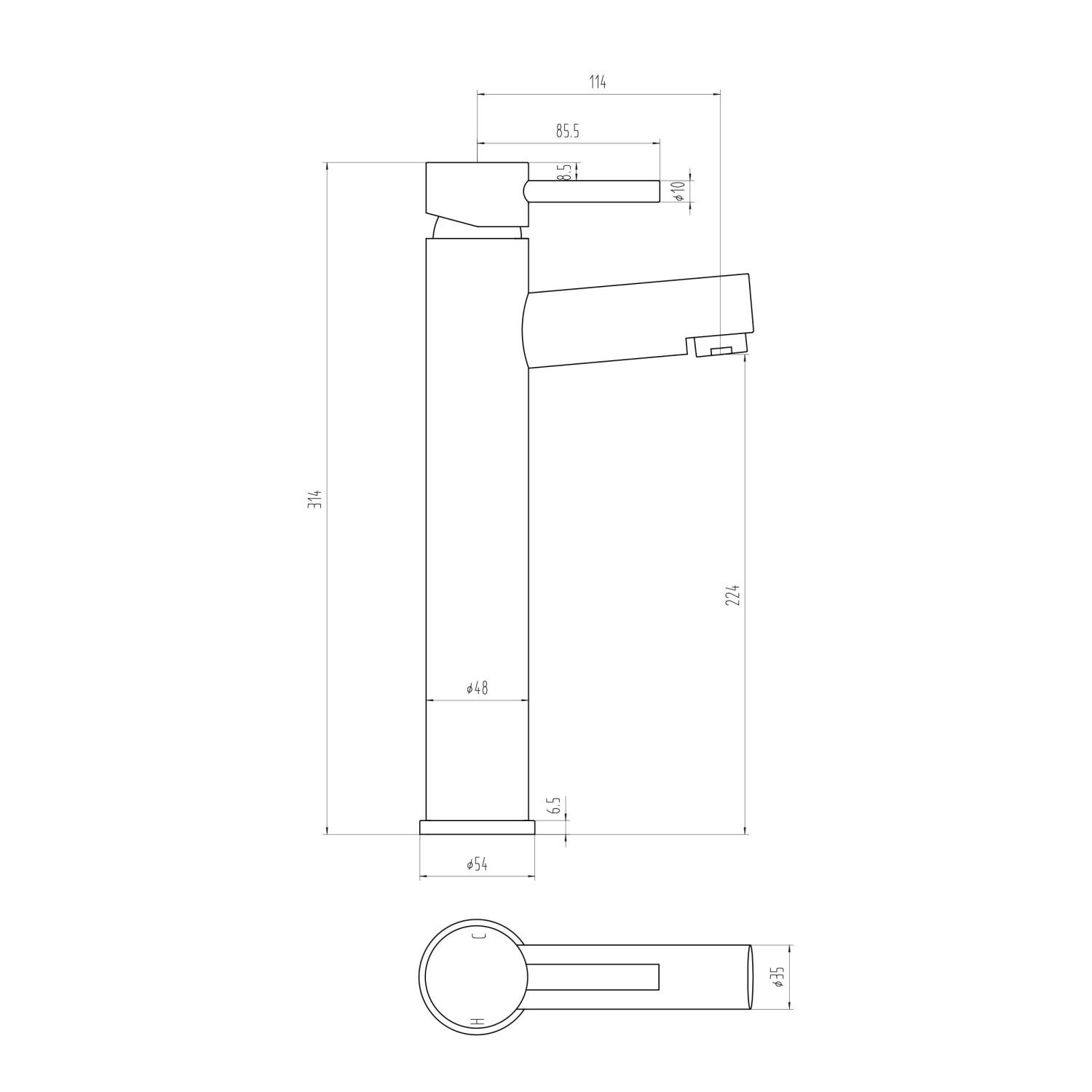

Product Measurements
Product Weight (KG): 1.85
Product Width (mm): 54
Product Height (mm): 314
Product Depth (mm): 0
Product Length (mm): 0
Primary Packed Measurements
Packaged Weight: 2
Packed Length: 33.5
Packed Width: 20
Packed Height: 6.8
Packaging Weights
Card (kg): 0.087
Paper (kg): 0
Wood (kg): 0
Plastic (kg): 0.05
Compliance DOP
HBDOC007 , HBDOC008
