Features and benefits
WRAS Approved Shower Valve
General Specification
WRAS Approved Shower Valve
|
Construction Material |
Brass |
|
Installation type |
Exposed Bar Valve |
|
Colour / Finish |
Brass / Chrome |
Product Specification
Tap / Shower specification
|
WRAS Approved |
No |
|
TMV Approved |
No |
|
Minimum Operating Pressure (bar) |
0.5 |
|
Maximum Operating Pressure (bar) |
5 |
|
Flexible Tails Included |
No |
|
Number of tap holes required |
N/a |
|
Handle Type |
Round |
|
Swivel Spout |
N/a |
|
Inlet Connection |
3/4 BSP |
|
Outlet Connection |
1/2 BSP |
|
Tap Hole Diameter (mm) |
N/A |
|
Tap Type description |
Exposed Bar Valve |
|
Includes Waste |
N/a |
|
Valve / Cartridge Type |
Thermostatic & Quarter Turn Cartridge |
|
Cartridge Spare code |
0 |
Tap / Shower specification
Flow Rates
|
0.2bar (l/min) |
- |
|
0.5bar (l/min) |
8.8 |
|
1bar (l/min) |
12.6 |
|
2bar (l/min) |
18.1 |
|
3bar (l/min) |
22.2 |
Showering specification
|
Anti-Scald |
Yes |
|
Shower Diverter function |
No |
|
Number of outlets |
1 |
|
Thermostatic Tempurature control |
Yes |
|
Cool Touch |
No |
|
Shower Handset funtions |
N/a |
|
Shower Handset funtions |
0.5 |
|
Minimum Working Pressure |
0 |
|
Maximum Working Pressure |
0 |
|
Shape |
Round |
|
Pipe Centres (mm) |
150 |
|
Inlet Connection |
3/4 BSP |
|
Outlet Connection |
1/2 BSP Handset |
|
Adjustable |
N/a |
|
Adjustment (mm) |
N/a |
|
Handle Type |
Round |
Spares Codes
|
Diverter Spares |
Thermostatic & Quarter Turn Cartridge |
Product Transportation
Barcode: 5060964933870
Country of origin: China
Commodity code: 8481804090

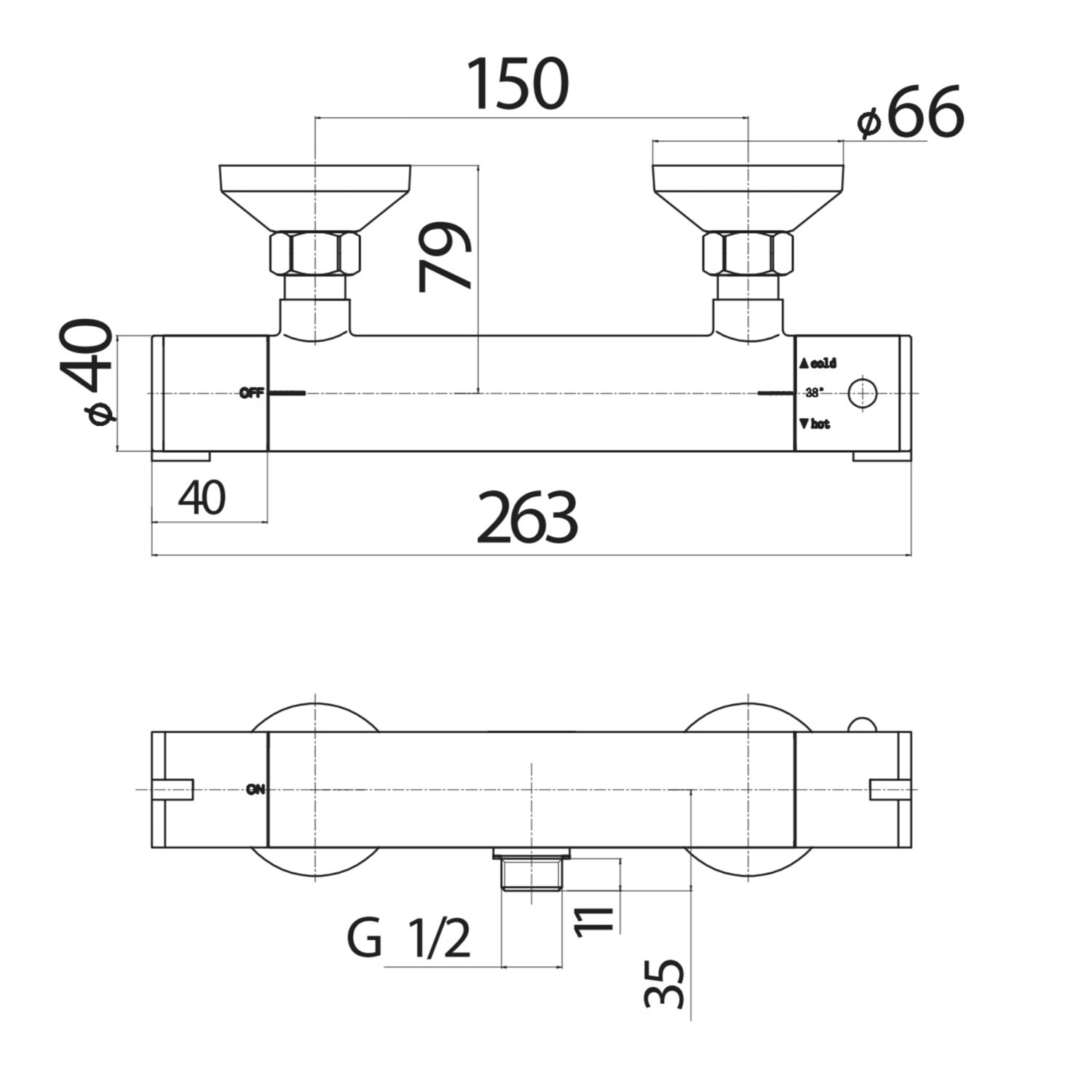

Product Measurements
Product Weight (KG): 1.365
Product Width (mm): 263
Product Height (mm): 40
Product Depth (mm): 99
Product Length (mm): 0
Primary Packed Measurements
Packaged Weight: 1.45
Packed Length: 344
Packed Width: 80
Packed Height: 70
Compliance DOP
HBDOC042 , HBDOC043
