Features and benefits
WRAS Approved Shower Valve
General Specification
WRAS Approved Shower Valve
|
Construction Material |
Brass |
|
Installation type |
Exposed Bar Valve |
|
Colour / Finish |
Brass / Chrome |
Showering specification
|
Anti-Scald |
Yes |
|
Shower Diverter function |
No |
|
Number of outlets |
1 |
|
Thermostatic Tempurature control |
Yes |
|
Cool Touch |
No |
|
Shower Handset funtions |
N/a |
|
Minimum Working Pressure |
0 |
|
Maximum Working Pressure |
0 |
|
Shape |
Square |
|
Pipe Centres (mm) |
150 |
|
Inlet Connection |
3/4 BSP |
|
Outlet Connection |
1/2 BSP Handset |
|
Adjustable |
N/a |
|
Adjustment (mm) |
N/a |
|
Handle Type |
Square |
|
Flow Rate 0.5b (l/min) |
8.8 |
|
Flow Rate 1 b (l/min) |
12.6 |
|
Flow Rate 2 b (l/min) |
18.1 |
|
Flow Rate 3 b (l/min) |
22.2 |
Spares Codes
|
Diverter Spares |
Thermostatic & Quarter Turn Cartridge |
|
Thermostatic cartridge Spares |
0 |
Product Transportation
Barcode: 5060964933078
Country of origin: China
Commodity code: 8481804090

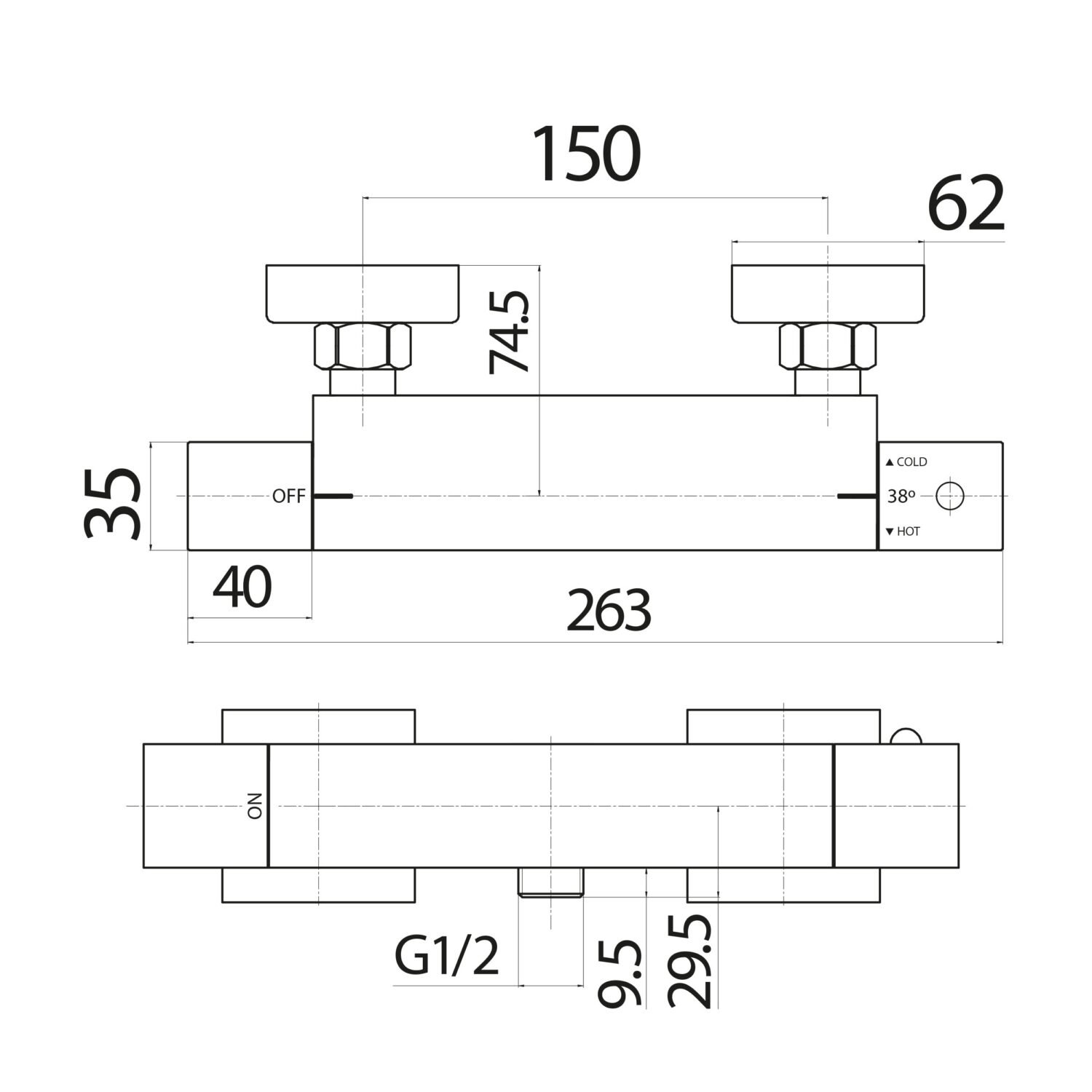

Product Measurements
Product Weight (KG): 1.67
Product Width (mm): 263
Product Height (mm): 35
Product Depth (mm): 92
Primary Packed Measurements
Packaged Weight: 1.72
Packed Length: 344
Packed Width: 80
Packed Height: 70
