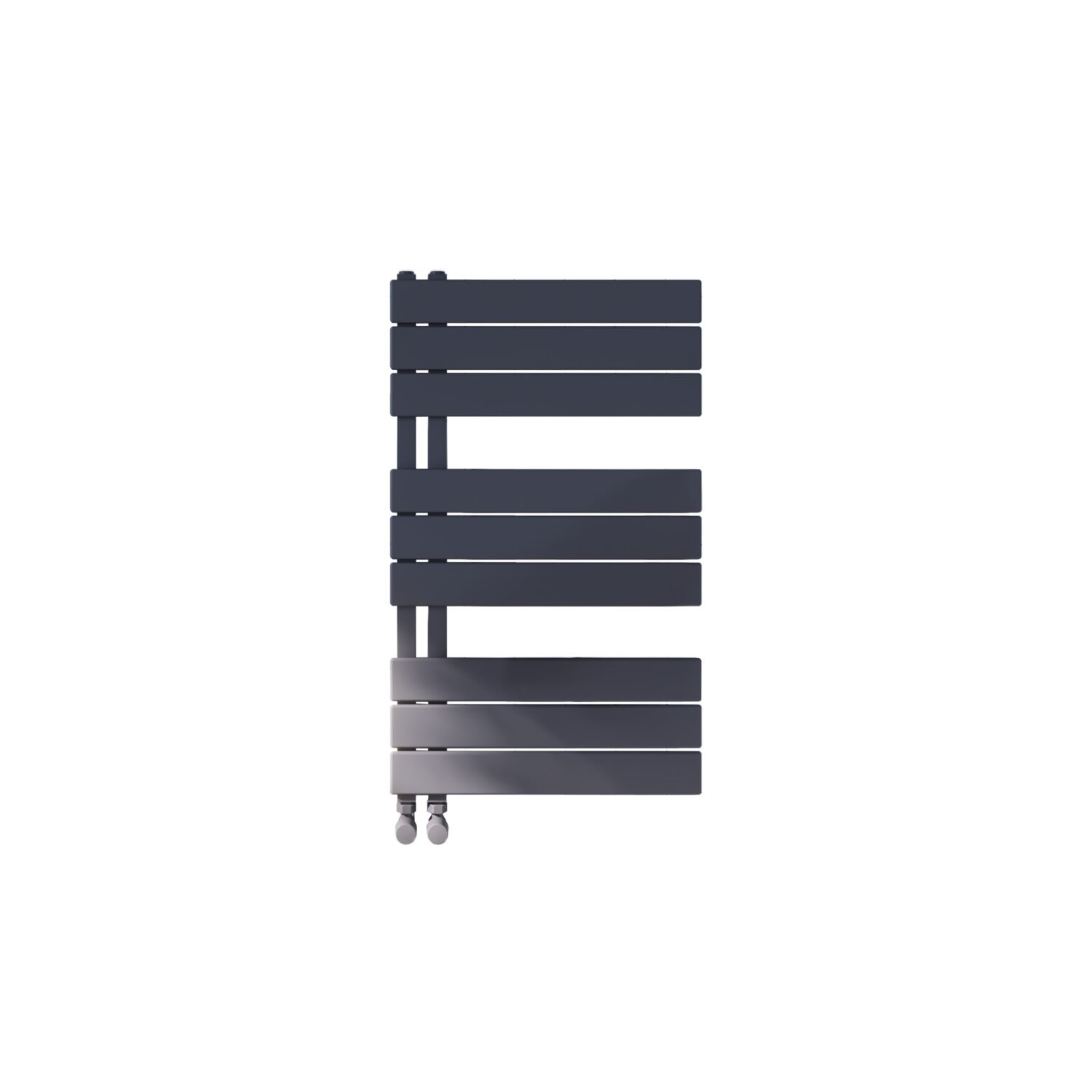

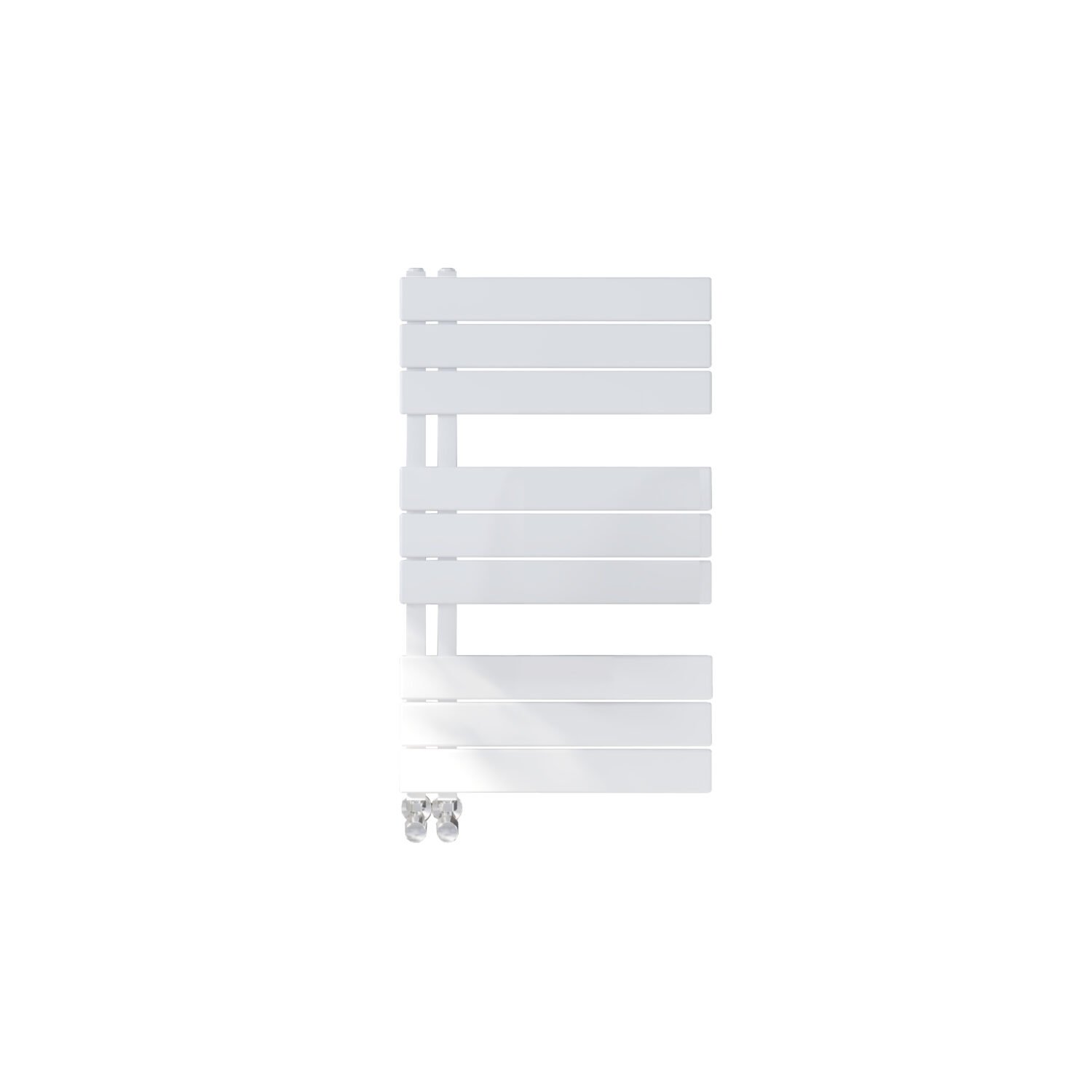

Thames

SKU: THAM1640-500-A

£555.00

Carbon Anthracite
White
Clear
Compare
Add to wishlist

Description

  1. Bar Arrangement: 3×3
    • Bars: 9
    • Depth: 106 mm
    • Bar Diameter: 40×20
    • BTU: 1358
    • Watts: 398
    • Element Installation: Yes
    • Max Projection: 106 mm
    • Pipe Centers (C1): 50 mm
    • Pipe Centers (C2): 80 mm
  2. Bar Arrangement: 3×3
    • Bars: 9
    • Depth: 106 mm
    • BTU: 1569
    • Watts: 460
    • Element Installation: Yes
    • Max Projection: 106 mm
    • Pipe Centers: C1 – 50 mm, C2 – 80 mm
  3. Bar Arrangement: 4×3
    • Bars: 12
    • Depth: 106 mm
    • BTU: 1839
    • Watts: 539
    • Element Installation: Yes
    • Max Projection: 106 mm
    • Pipe Centers: C1 – 50 mm, C2 – 80 mm
  4. Bar Arrangement: 4×3
    • Bars: 12
    • Depth: 106 mm
    • BTU: 2118
    • Watts: 621
    • Element Installation: Yes
    • Max Projection: 106 mm
    • Pipe Centers: C1 – 50 mm, C2 – 80 mm
  5. Bar Arrangement: 6×3
    • Bars: 18
    • Depth: 106 mm
    • BTU: 2753
    • Watts: 807
    • Element Installation: Yes
    • Max Projection: 106 mm
    • Pipe Centers: C1 – 50 mm, C2 – 80 mm
  6. Bar Arrangement: 6×3
    • Bars: 18
    • Depth: 106 mm
    • BTU: 3180
    • Watts: 932
    • Element Installation: Yes
    • Max Projection: 106 mm
    • Pipe Centers: C1 – 50 mm, C2 – 80 mm

Specification

Overview

color

Carbon Anthracite

,

White
Height

800

,

1150

,

1650
Width

500

,

600
