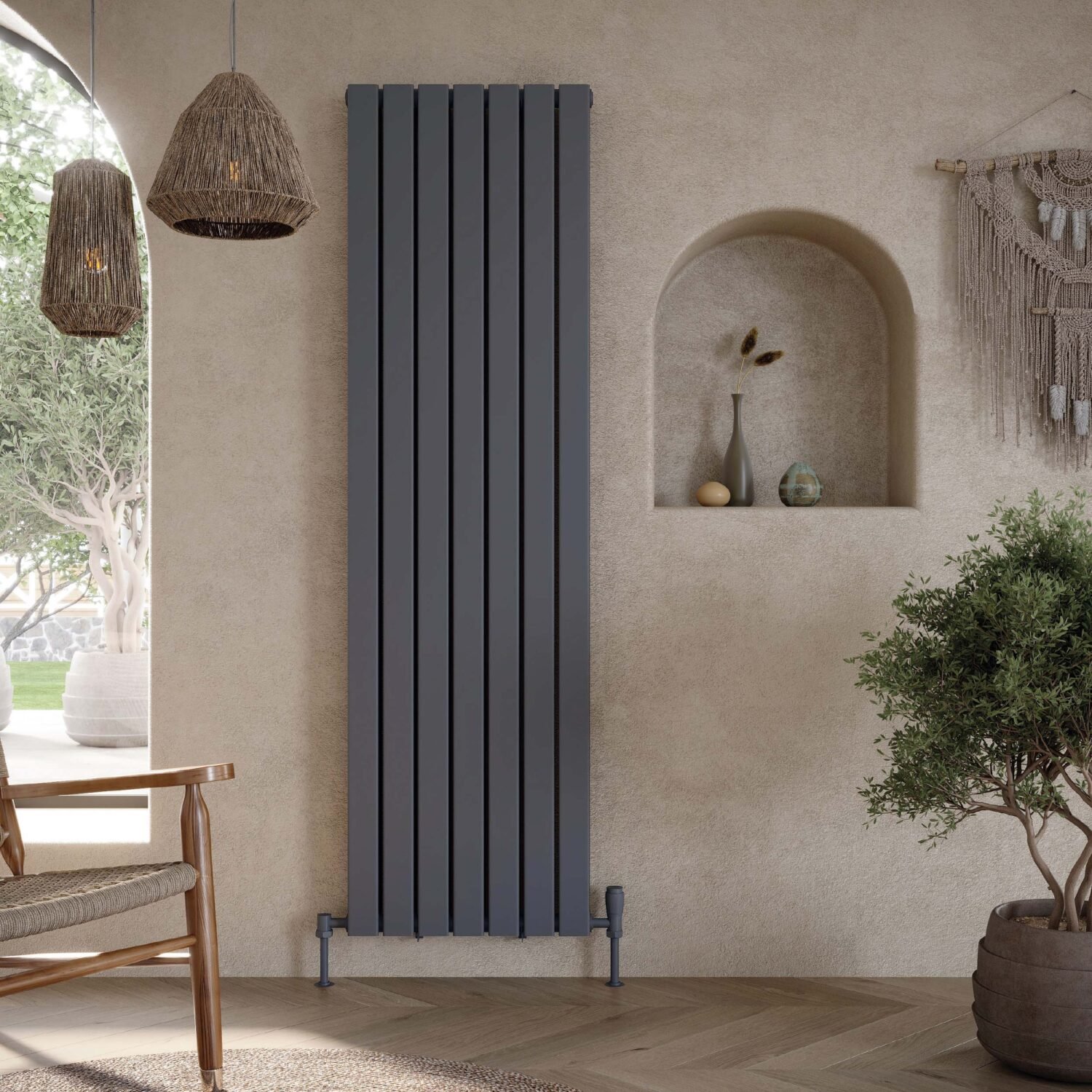

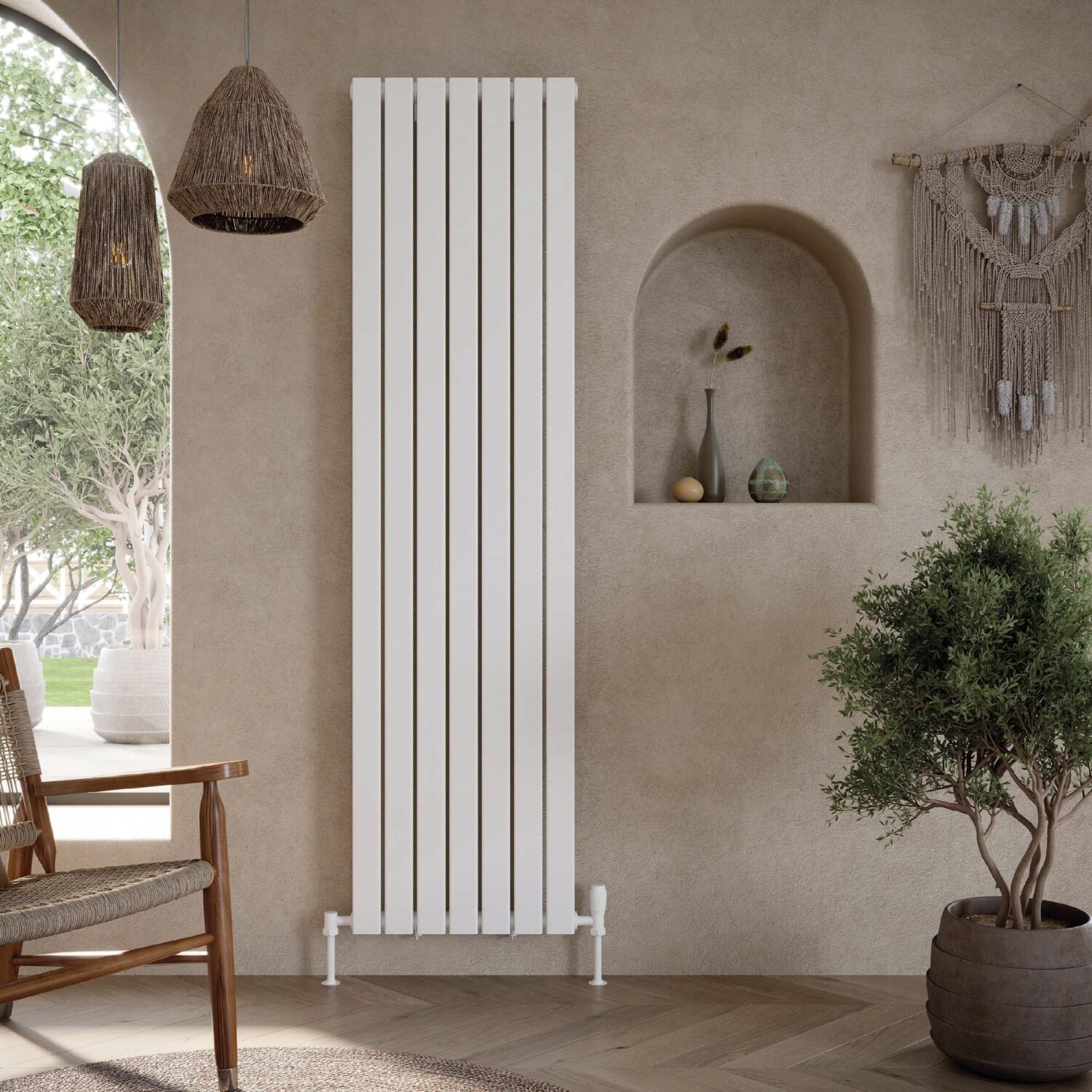

Bravo Designer Radiator

Heating Attributes:

• Bar Arrangement: 3, 6, 7, 8
• Number of Bars: Ranges from 3 to 8
• Radiator Depth: 52 mm
• Bar Diameter: Ø 60 * 12 mm
• BTU @ 50°C: Ranges from 1105 to 2949
• Watts @ 50°C: Ranges from 324 to 864
• Element Installation Compatible: No
• Max Projection: 85 mm or 95 mm

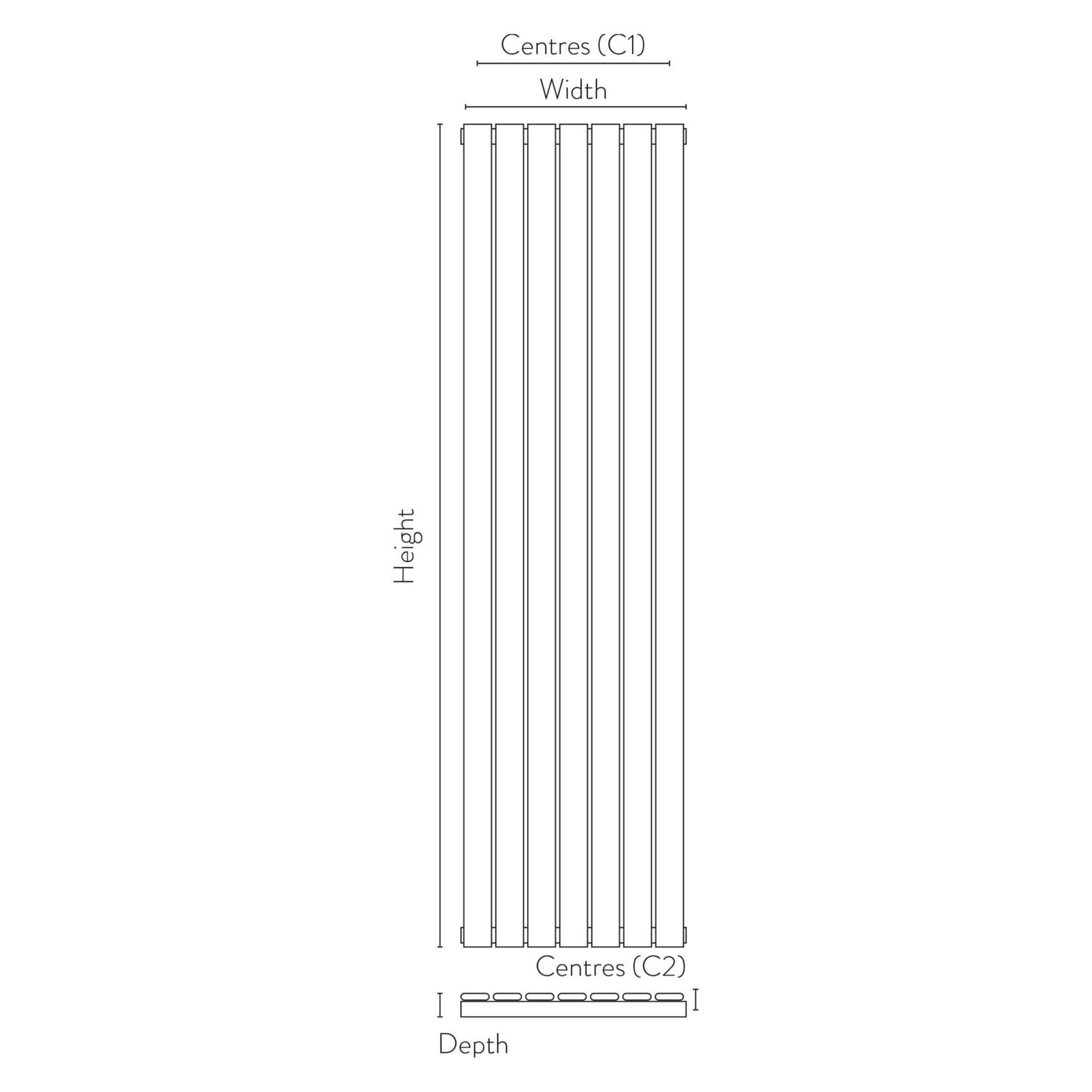

• Pipe Centers C1: Ranges from 284 mm to 544 mm + RV
• Pipe Centers C2: Ranges from 51 +/- 3 mm to 63
