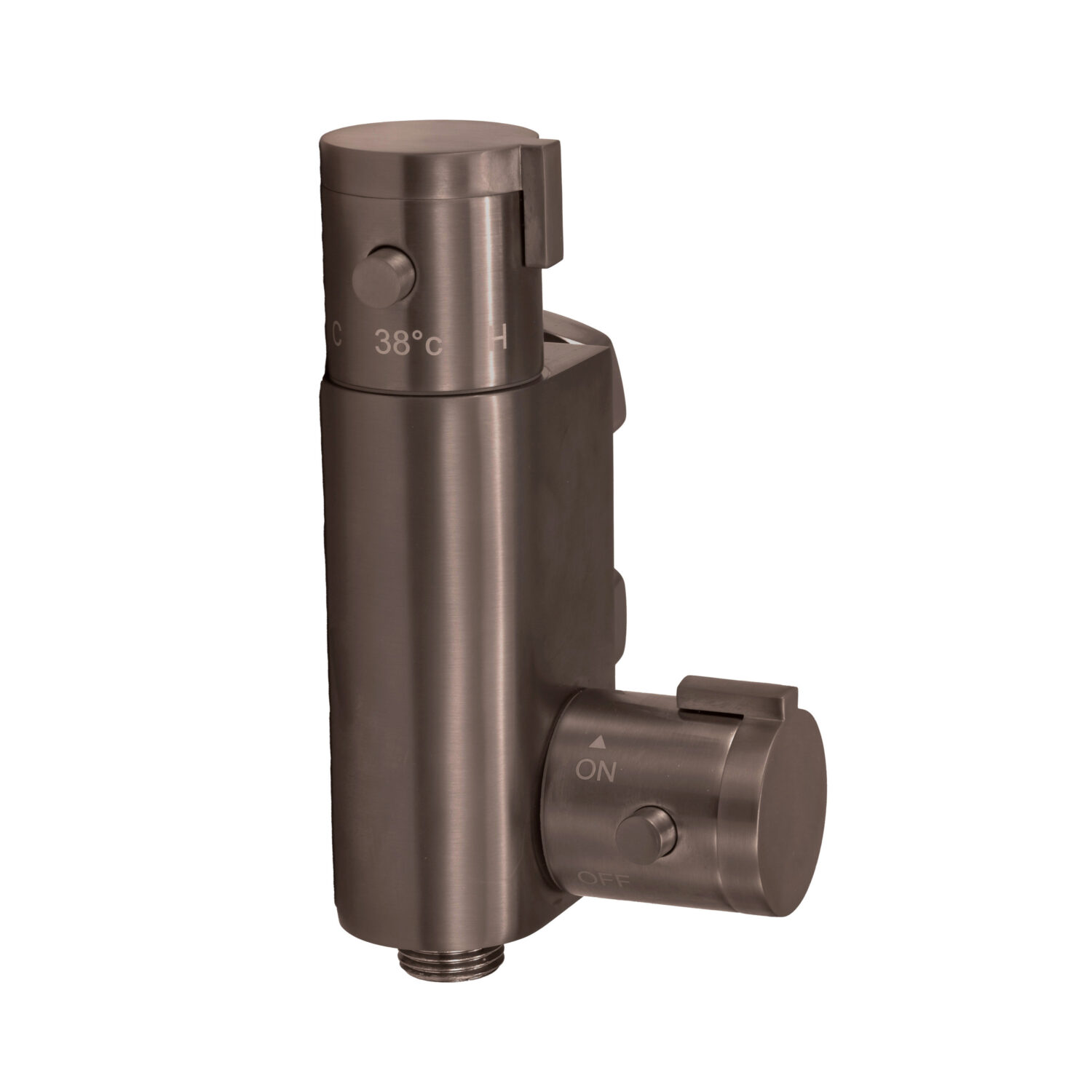

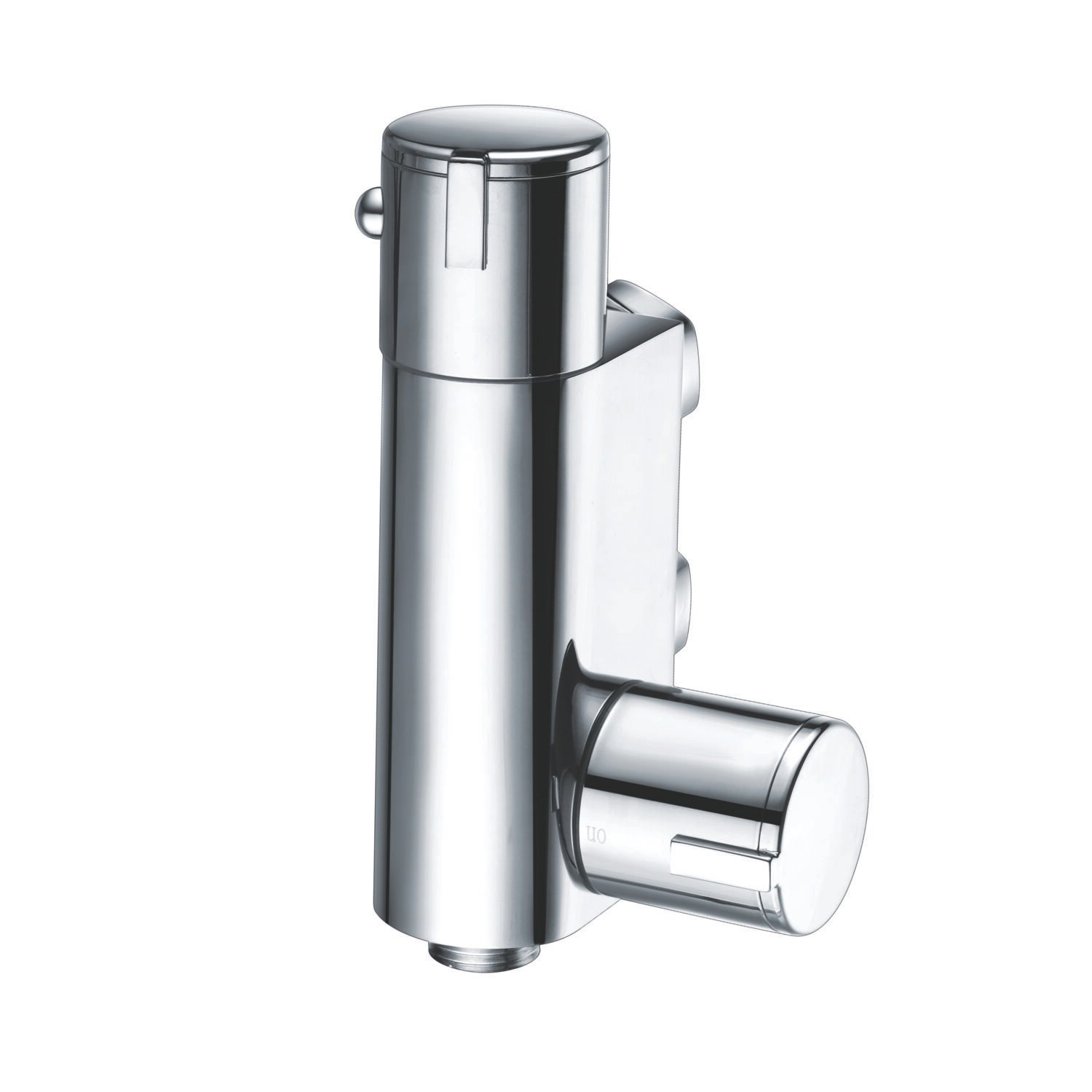

Thermostatic Vertical Valve for Douche

General Specification

Construction Material
Brass
Installation type
Wall Mounted
Colour / Finish
Chrome/Brushed Bronze/Brushed Brass/Black

Tap / Shower Specification

WRAS Approved: No
TMV Approved: No
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Flexible Tails Included: Yes
Number of Tap Holes Required: 1
Handle Type: Lever
Swivel Spout: Yes
Inlet Connection: 1/2 BSP
Outlet Connection: 3/4 BSP
Tap Hole Diameter (mm): 35
Tap Type Description: Single Lever Mixer
Includes Waste: Yes
Valve / Cartridge Type: Ceramic Disc
Cartridge Spare Code: 12345

Flow Rates

0.2bar (l/min): 3
0.5bar (l/min): 6
1bar (l/min): 9
2bar (l/min): 12
3bar (l/min): 15

Product Transportation

Barcode: 5060964935300
Country of Origin: CH
Commodity Code: 8481809000

Product Measurements

Product Weight (KG): 1.25
Product Width (mm): 60
Product Height (mm): 150
Product Depth (mm): 80
Product Length (mm): 160

Primary Packed Measurements

Packaged Weight (KG): 1.45
Packed Length (mm): 85
Packed Width (mm): 95
Packed Height (mm): 180

Packaging Weights

Card (kg): 0.20
Plastic (kg): 0.05
