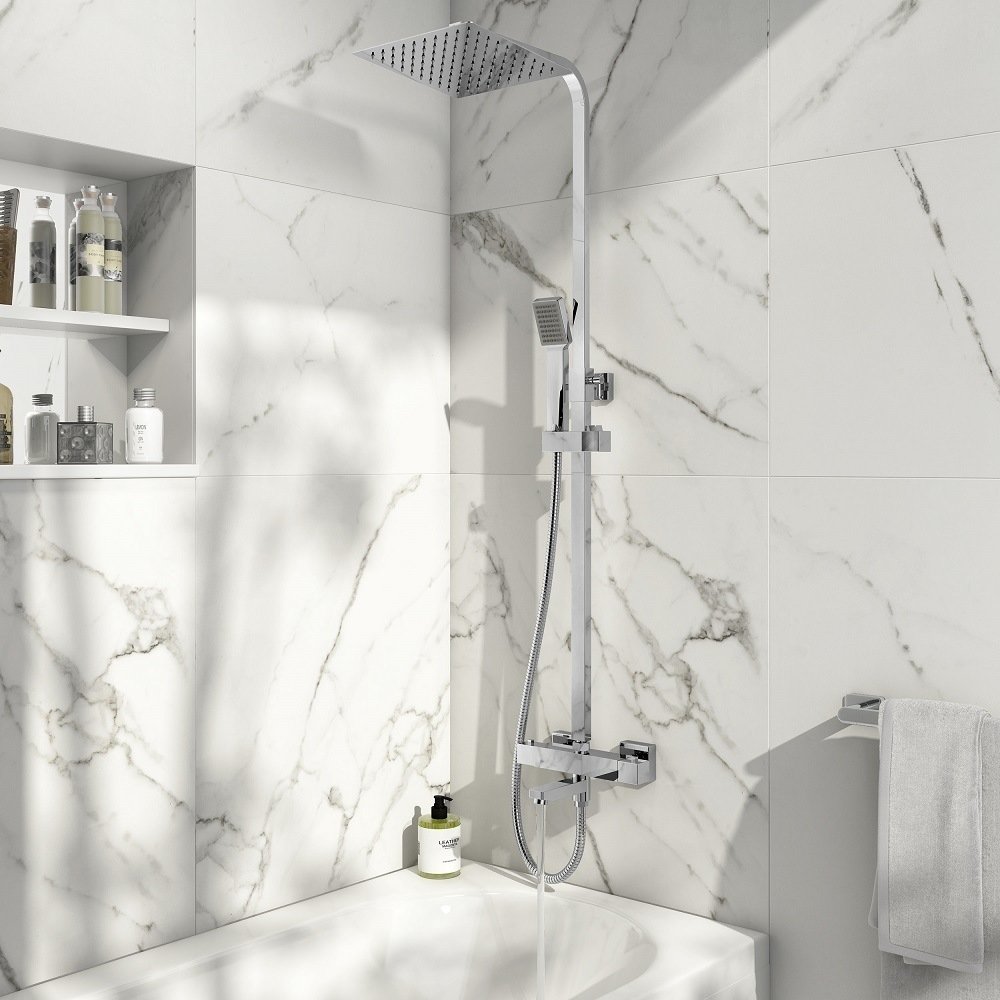

Block Square Rigid Riser Shower with Bath Filler

Tap / Shower specification

WRAS Approved
Yes
TMV Approved
No
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5
Flexible Tails Included
No
Number of tap holes required
N/a
Handle Type
Square
Swivel Spout
No
Inlet Connection
3/4 BSP
Outlet Connection
1/2 BSP Handset
Tap Hole Diameter (mm)
N/a
Tap Type description
Exposed Bar Valve with Bath filler
Includes Waste
No
Valve / Cartridge Type
Thermostatic & Quarter Turn Cartridge
Cartridge Spare code
0

Flow Rates

0.2bar (l/min)
2.5
0.5bar (l/min)
9.2
1bar (l/min)
14
2bar (l/min)
20
3bar (l/min)
24.8
Showering specification
Anti-Scald
Yes
Shower Diverter function
Yes
Number of outlets
3
Thermostatic Tempurature control
Yes
Cool Touch
No
Shower Handset funtions
1
Minimum Working Pressure
0.5
Maximum Working Pressure
5
Shape
Square
Pipe Centres (mm)
150
Inlet Connection
3/4 BSP
Outlet Connection
1/2 BSP Handset
Adjustable
Yes
Adjustment (mm)
900-1470
Handle Type
Square
Spares Codes
Diverter Spares
0
Thermostatic cartridge Spares
0

Product Transportation

Barcode: 5060713723226
Country of origin: CH
Commodity code: 8481809000

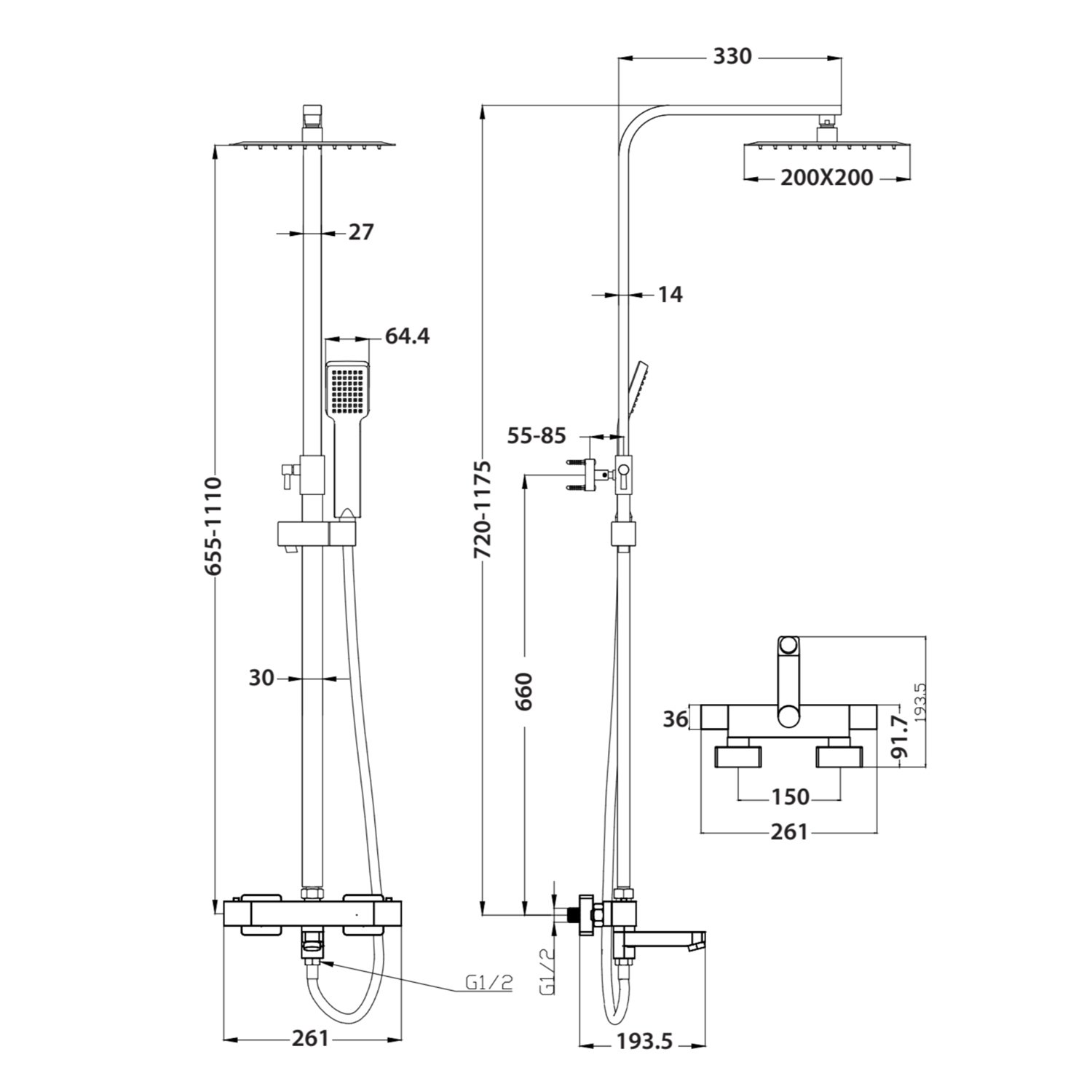

Product Measurements

Product Weight (KG): 4.98
Product Width (mm): 261
Product Height (mm): 1175
Product Depth (mm): 330
Product Length (mm): 193.5

Primary Packed Measurements

Packaged Weight: 5.5
Packed Length: 850
Packed Width: 360
Packed Height: 120
